Summer

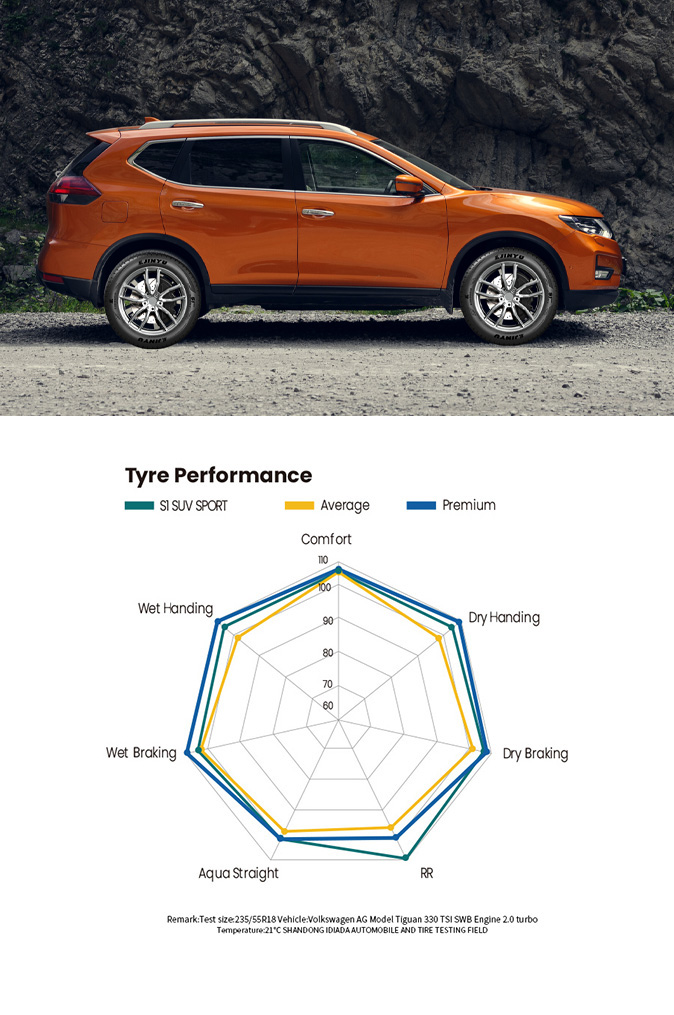

Sporty

Wet braking

Dry braking

Handling

Excellent dry grip and wet braking performance

Excellent steering angle for cornering, giving confidence in stable handling, even at high speeds.

Technical profile

Speed symbol: V,W,Y

Tread width: 225 -285

Series: 40-55

Inch: 18-20

RR: B-C

WG: A

Noise: B

Commit ourselves to providing customers the best value and experience.

Features

scale of 1 to 10(best)

Wear

6
Breaking

9
Handling

7
Ride Comfort

7
Quiet Ride

7
Fuel Efficiency

9

Tire Parameters

How to read your Tire

All

20'

19'

18'

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
20	40	275/40R20	106Y	XL	9.5	9	11	7.4	2094	50	728
20	45	245/45R20	103Y	XL	8	7.5	9	7.4	1929	50	728
20	45	255/45R20	105Y	XL	8.5	8	9.5	7.4	2039	50	738
20	45	275/45R20	110Y	XL	9	8.5	10.5	7.4	2337	50	756
20	50	285/50R20	116W	XL	9	8	10	7.8	2756	50	794
19	45	235/45R19	99Y	XL	8	7.5	9	7.4	1709	50	695
19	45	255/45R19	104Y	XL	8.5	8	9.5	7.4	1984	50	713
19	50	255/50R19	107Y	XL	8	7	9	7.4	2149	50	739
19	55	225/55R19	103V	XL	7	6	8	7.4	1929	50	731
19	55	235/55R19	105W	XL	7.5	6.5	8.5	7.4	2039	50	741
18	50	235/50R18	101Y	XL	7.5	6.5	8.5	7.4	1819	50	693
18	55	235/55R18	104W	XL	7.5	6.5	8.5	7.4	1984	50	715

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
20	40	275/40R20	106Y	XL	9.5	9	11	7.4	2094	50	728
20	45	245/45R20	103Y	XL	8	7.5	9	7.4	1929	50	728
20	45	255/45R20	105Y	XL	8.5	8	9.5	7.4	2039	50	738
20	45	275/45R20	110Y	XL	9	8.5	10.5	7.4	2337	50	756
20	50	285/50R20	116W	XL	9	8	10	7.8	2756	50	794

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
19	45	235/45R19	99Y	XL	8	7.5	9	7.4	1709	50	695
19	45	255/45R19	104Y	XL	8.5	8	9.5	7.4	1984	50	713
19	50	255/50R19	107Y	XL	8	7	9	7.4	2149	50	739
19	55	225/55R19	103V	XL	7	6	8	7.4	1929	50	731
19	55	235/55R19	105W	XL	7.5	6.5	8.5	7.4	2039	50	741

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
18	50	235/50R18	101Y	XL	7.5	6.5	8.5	7.4	1819	50	693
18	55	235/55R18	104W	XL	7.5	6.5	8.5	7.4	1984	50	715
