W5 - JINYU Tire - Time Tells Quality

0°
30°
60°
90°

Winter

Snow

Wet

3PMSF

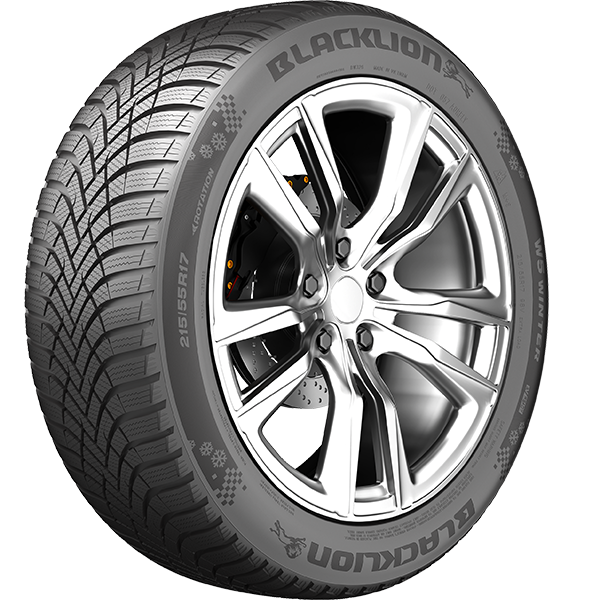

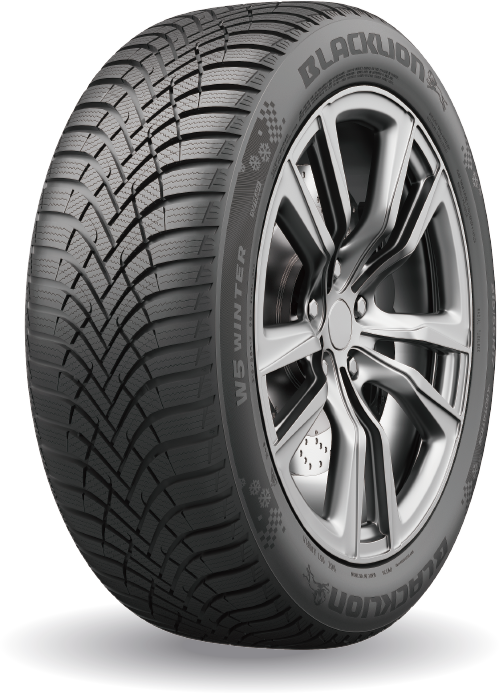

The W5 WINTER is a winter tire focused on snow handling performance and wet road safety. It offers strong traction and stable control on icy, snowy, and wet surfaces, delivering confident handling in demanding winter conditions.

Technical profile

Speed symbol: T, H, V, W

Tread width: 185–285

Series: 35–65

Inch: 15-21

RR: B-C

WG: A-B

Noise: A-B

Features

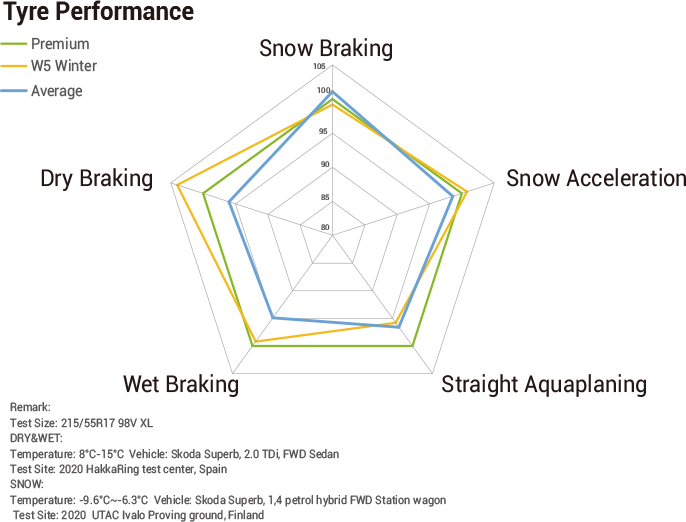

Performance
Performance	High Performance	Ultra High Performance	SUV-Ultra High Performance	Alpine Winter
Tread Wear	7	7	7	7
Wet Breaking	10	10	10	9
Dry Breaking	10	10	10	8
Handling	8	10	9	8
Ride Comfort	10	8	8	9
Quiet Ride	10	9	8	7
Snow	/	/	/	10
Ice	/	/	/	8

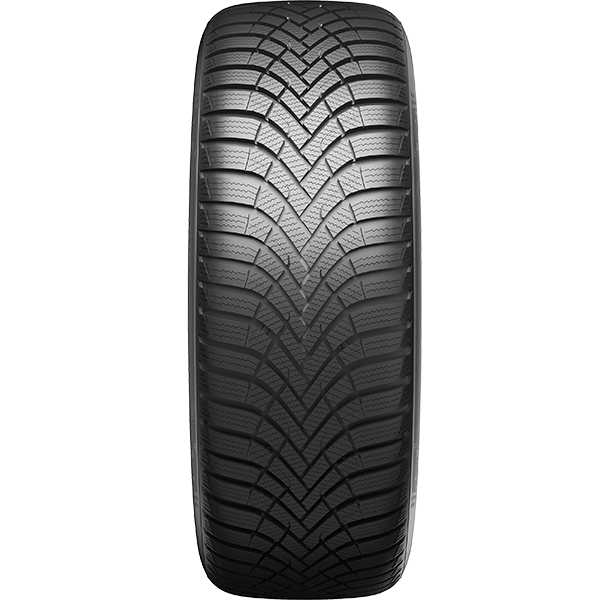

Optimized Wide Main Grooves

Provides continuous biting edges for strong snow traction, while improving water evacuation under centrifugal force.

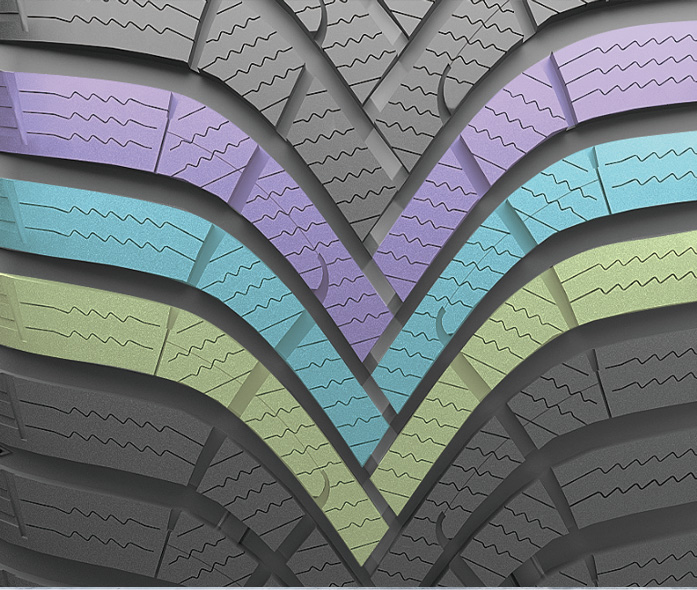

High-Density Well Positioned Sipes

High-Density Well Positioned Sipes Delivers multi-directional grip on ice and snow for improved winter traction.
Advanced Rubber Compound

Ensures reliable grip on snowy and wet roads.

Optimized Groove Design

Utilizes biting edge technology to enhance wet and snow performance.
Simulation-Optimized Tread Design

Reduces noise to deliver a quieter and more comfortable ride.

Tire Parameters

How to read your Tire

ALL

20"

19"

18"

17"

16"

15"

Inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth(mm)	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
20	45	275/45R20	110W	XL	9	8.5	10.5	8.1	2337	50	756
19	45	245/45R19	102V	XL	8	7.5	9	8.1	1874	50	703
19	55	235/55R19	105V	XL	7.5	6.5	8.5	8.5	2039	50	741
18	40	225/40R18	92V	XL	8	7.5	9	8.1	1389	50	637
17	45	225/45R17	94V	XL	7.5	7	8.5	8.1	1477	50	634
17	55	215/55R17	98V	XL	7	6	7.5	8.5	1653	50	668
16	55	205/55R16	94H	XL	6.5	5.5	7.5	8.5	1477	50	632
16	55	195/55R16	91H	XL	6	5.5	7	8.1	1356	50	620
16	60	215/60R16	99H	XL	6.5	6	7.5	8.5	1709	50	664
16	60	205/60R16	96H	XL	6	5.5	7.5	8.5	1565	50	652
15	65	195/65R15	95T	XL	6	5.5	7	8.1	1521	50	635

Inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
20	45	275/45R20	110W	XL	9	8.5	10.5	8.1	2337	50	756

Inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
19	45	245/45R19	102V	XL	8	7.5	9	8.1	1874	50	703
19	55	235/55R19	105V	XL	7.5	6.5	8.5	8.5	2039	50	741

Inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
18	40	225/40R18	92V	XL	8	7.5	9	8.1	1389	50	637

Inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
17	45	225/45R17	94V	XL	7.5	7	8.5	8.1	1477	50	634
17	55	215/55R17	98V	XL	7	6	7.5	8.5	1653	50	668

Inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
16	55	205/55R16	94H	XL	6.5	5.5	7.5	8.5	1477	50	632
16	55	195/55R16	91H	XL	6	5.5	7	8.1	1356	50	620
16	60	215/60R16	99H	XL	6.5	6	7.5	8.5	1709	50	664
16	60	205/60R16	96H	XL	6	5.5	7.5	8.5	1565	50	652

Inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter
15	65	195/65R15	95T	XL	6	5.5	7	8.1	1521	50	635

Optimized Wide Main Grooves

High-Density Well Positioned Sipes

Advanced Rubber Compound

Optimized Groove Design

Simulation-Optimized Tread Design
