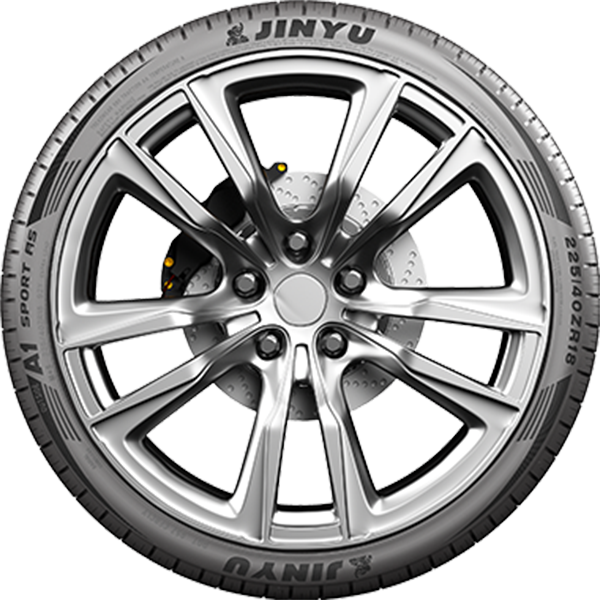

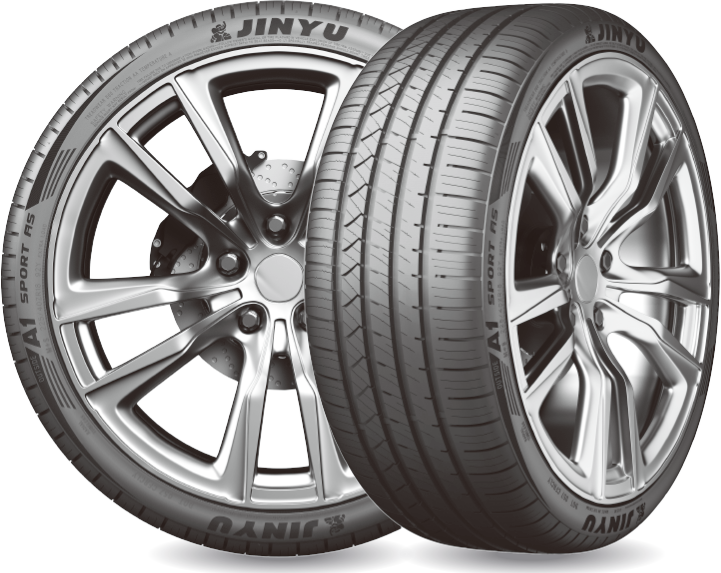

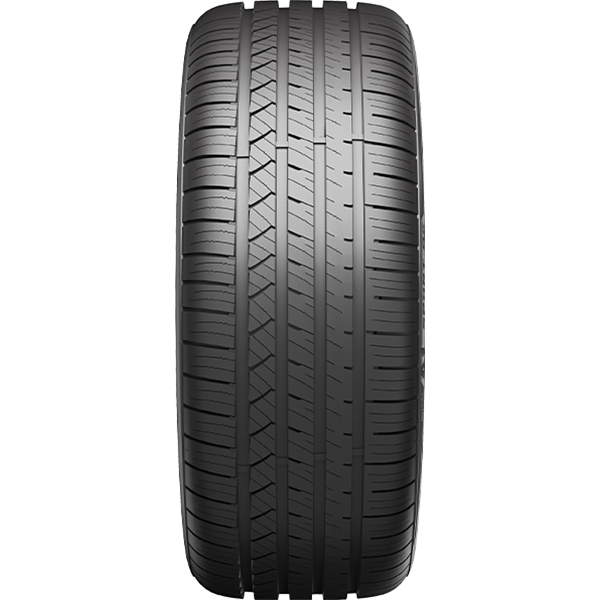

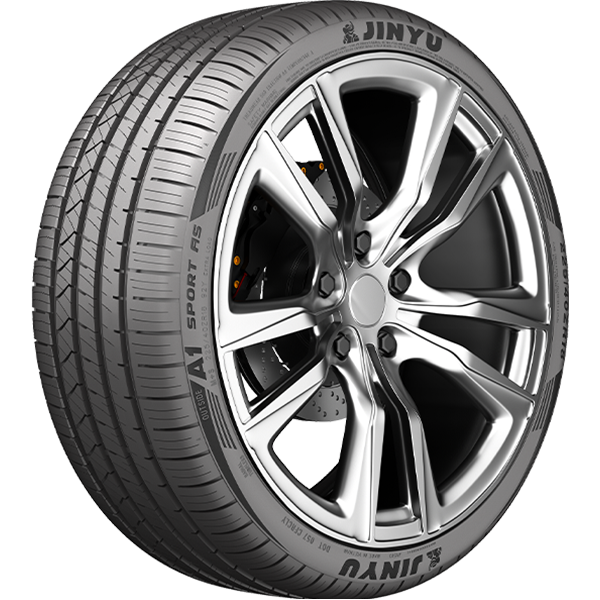

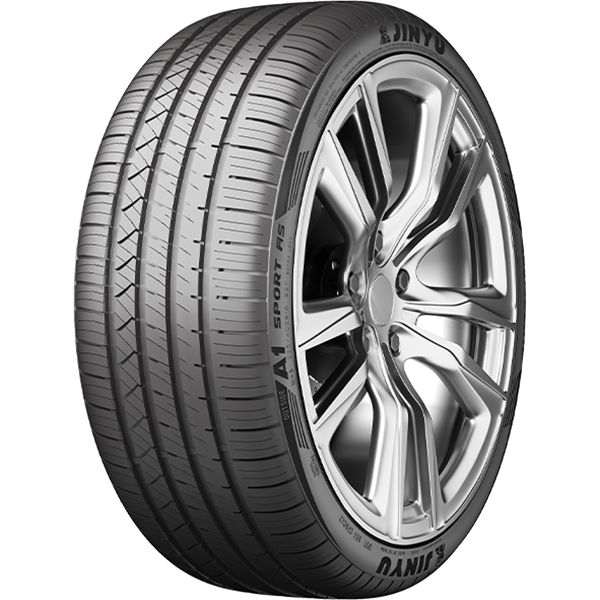

The A1 SPORT AS is an all-season ultra high-performance tire focused on providing handling stability and all-season drivability. It delivers a well-balanced combination of water drainage, dry braking, and responsive steering, while providing reliable traction in rain and light snow for confident everyday driving.

Technical profile

Speed symbol: W,Y

Tread width: 205–275

Series: 35–45

Inch: 17–20

UTQG: 560 AA A

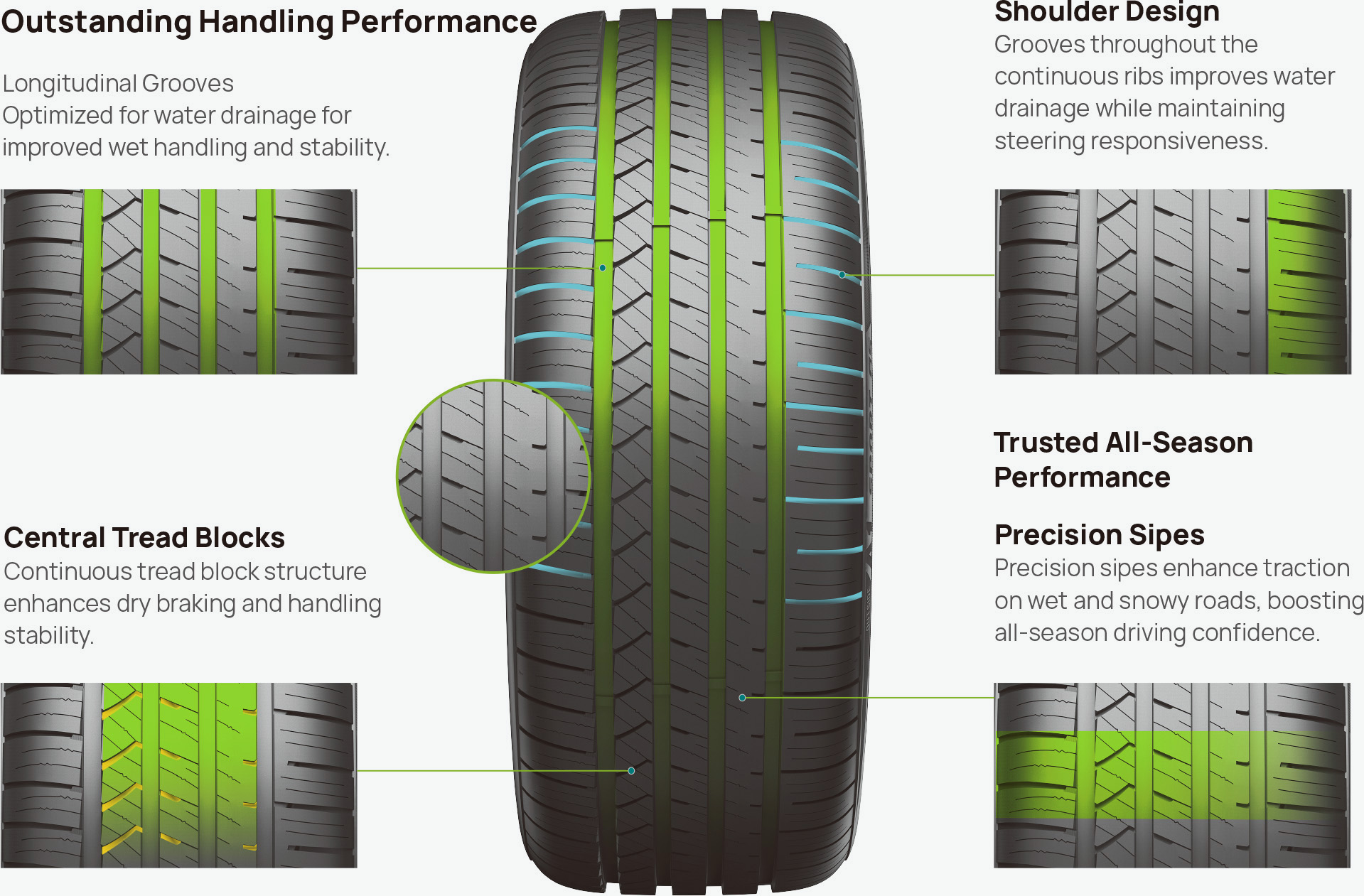

Features

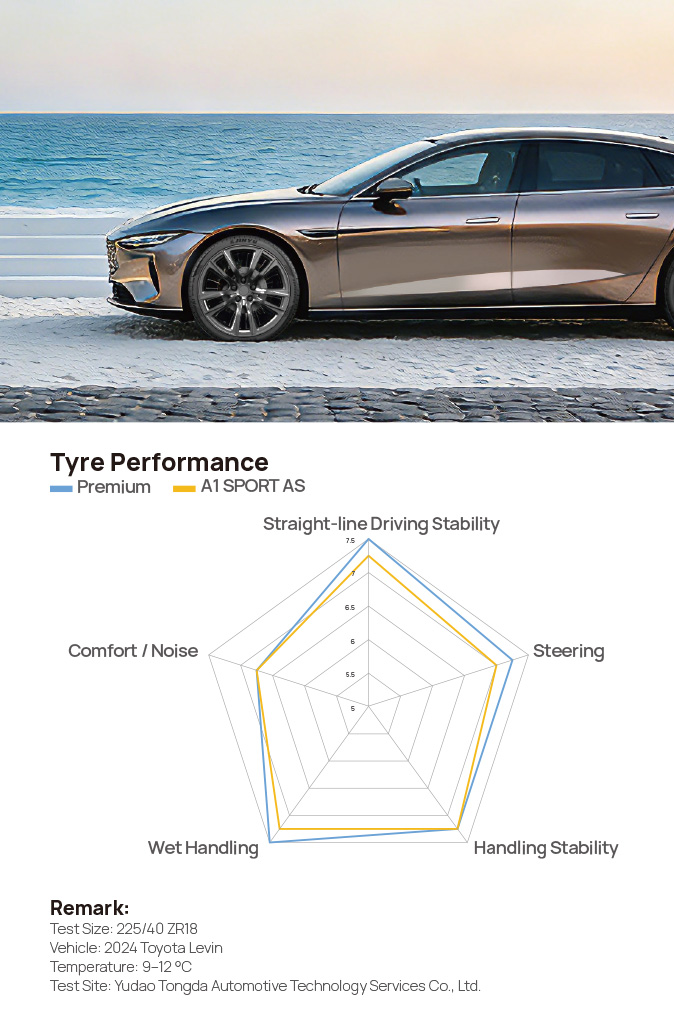

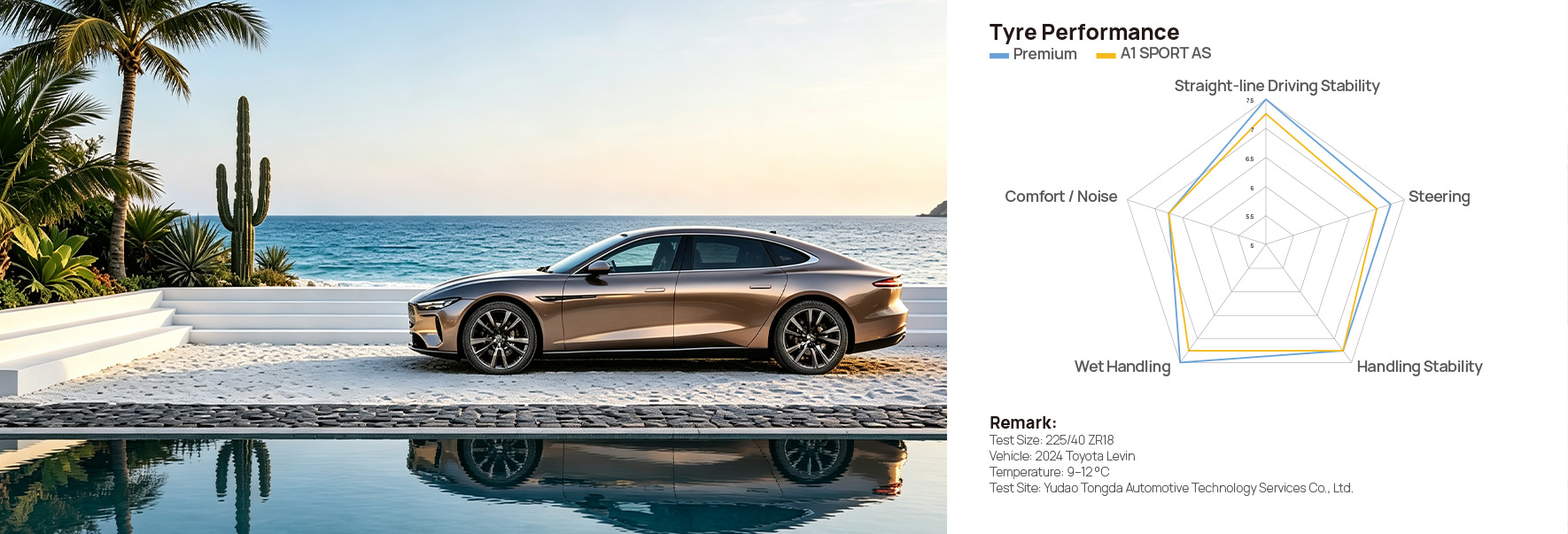

Performance
Performance	Touring	Ultra High Performance	Highway Teerrain	All Terrain	Rugged Terrain
Tread Wear	10	8	9	9	8
Wet Breaking	10	10	9	9	9
Dry Breaking	10	10	9	9	9
Handling	8	10	9	8	8
Ride Comfort	10	8	9	8	7
Quiet Ride	10	9	9	8	7
winter/Snow	7	7	7	9	8
Ice	/	/	/	9	8

Tire Parameters

How to read your Tire

All

20"

19"

18"

17"

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	35	245/35R20	245	95W	XL	81/2J	8J	91/2J	-	1521	50	686	560 AA A	50K
20	40	275/40R20	275	106Y	XL	9.5	9	11	-	2094	50	736	560 AA A	50K
20	45	255/45R20	255	105Y	XL	8.5	8	9.5	-	2039	50	746	560 AA A	50K
20	45	245/45R20	245	103W	XL	8	7.5	9	-	1929	50	736	560 AA A	50K
19	40	245/40R19	245	98W	XL	8.5	8	9.5	-	1653	50	695	560 AA A	50K
19	40	235/40R19	235	96W	XL	8.5	8	9.5	-	1565	50	679	560 AA A	50K
19	40	225/40R19	225	93Y	XL	8	7.5	9	-	1433	50	671	560 AA A	50K
19	45	245/45R19	245	102W	XL	8	7.5	9	-	1874	50	711	560 AA A	50K
18	40	245/40R18	245	97Y	XL	8.5	8	9.5	-	1609	50	661	560 AA A	50K
18	40	235/40R18	235	95W	XL	8.5	8	9.5	-	1521	50	653	560 AA A	50K
18	40	225/40ZR18	225	92Y	XL	8	7.5	9	7.5	1389	50	645	560 AA A	50K
18	45	245/45R18	245	100Y	XL	8	7.5	9	-	1764	50	685	560 AA A	50K
18	45	235/45R18	235	98W	XL	8	7.5	9	-	1653	50	677	560 AA A	50K
18	45	225/45R18	225	95W	XL	7.5	7	8.5	-	1521	50	667	560 AA A	50K
17	40	205/40R17	205	84W	XL	7.5	7	8	-	1102	50	602	560 AA A	50K
17	45	245/45R17	245	99Y	XL	8	7.5	9	-	1709	50	660	560 AA A	50K
17	45	235/45R17	235	97W	XL	8	7.5	9	-	1609	50	652	560 AA A	50K
17	45	225/45R17	225	94W	XL	7.5	7	8.5	-	1477	50	642	560 AA A	50K
17	45	215/45R17	215	91W	XL	7	7.5	8	-	1356	50	634	560 AA A	50K
17	45	205/45R17	205	88W	XL	7	6.5	7.5	-	1325	50	624	560 AA A	50K

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	35	245/35R20	245	95W	XL	81/2J	8J	91/2J	-	1521	50	686	560 AA A	50K
20	40	275/40R20	275	106Y	XL	9.5	9	11	-	2094	50	736	560 AA A	50K
20	45	255/45R20	255	105Y	XL	8.5	8	9.5	-	2039	50	746	560 AA A	50K
20	45	245/45R20	245	103W	XL	8	7.5	9	-	1929	50	736	560 AA A	50K

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
19	40	245/40R19	245	98W	XL	8.5	8	9.5	-	1653	50	695	560 AA A	50K
19	40	235/40R19	235	96W	XL	8.5	8	9.5	-	1565	50	679	560 AA A	50K
19	40	225/40R19	225	93Y	XL	8	7.5	9	-	1433	50	671	560 AA A	50K
19	45	245/45R19	245	102W	XL	8	7.5	9	-	1874	50	711	560 AA A	50K

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
18	40	245/40R18	245	97Y	XL	8.5	8	9.5	-	1609	50	661	560 AA A	50K
18	40	235/40R18	235	95W	XL	8.5	8	9.5	-	1521	50	653	560 AA A	50K
18	40	225/40ZR18	225	92Y	XL	8	7.5	9	7.5	1389	50	645	560 AA A	50K
18	45	245/45R18	245	100Y	XL	8	7.5	9	-	1764	50	685	560 AA A	50K
18	45	235/45R18	235	98W	XL	8	7.5	9	-	1653	50	677	560 AA A	50K
18	45	225/45R18	225	95W	XL	7.5	7	8.5	-	1521	50	667	560 AA A	50K

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
17	40	205/40R17	205	84W	XL	7.5	7	8	-	1102	50	602	560 AA A	50K
17	45	245/45R17	245	99Y	XL	8	7.5	9	-	1709	50	660	560 AA A	50K
17	45	235/45R17	235	97W	XL	8	7.5	9	-	1609	50	652	560 AA A	50K
17	45	225/45R17	225	94W	XL	7.5	7	8.5	-	1477	50	642	560 AA A	50K
17	45	215/45R17	215	91W	XL	7	7.5	8	-	1356	50	634	560 AA A	50K
17	45	205/45R17	205	88W	XL	7	6.5	7.5	-	1325	50	624	560 AA A	50K
