A5 SPORT AS - JINYU Tire - Time Tells Quality

0°
30°
60°
90°

All Season

Handling

Sporty

M+S

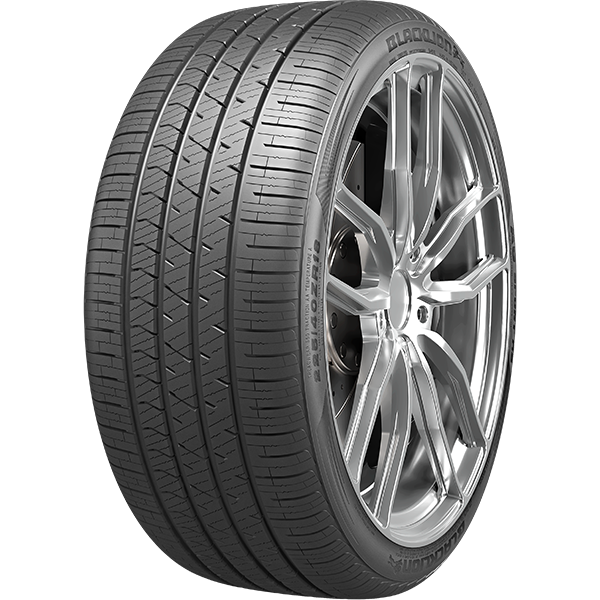

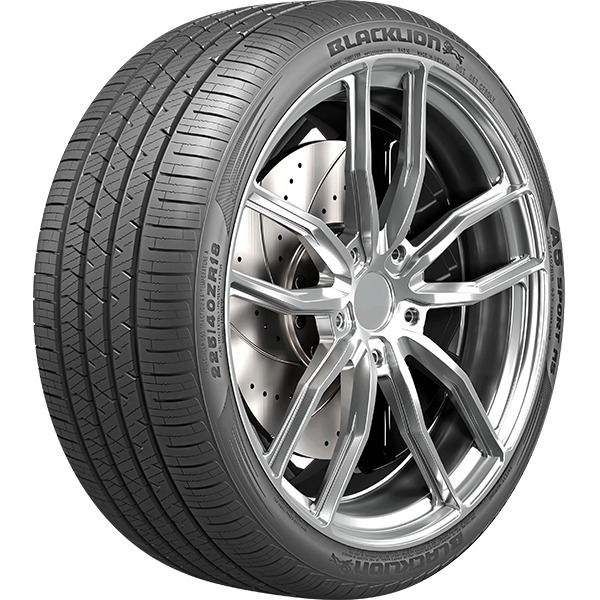

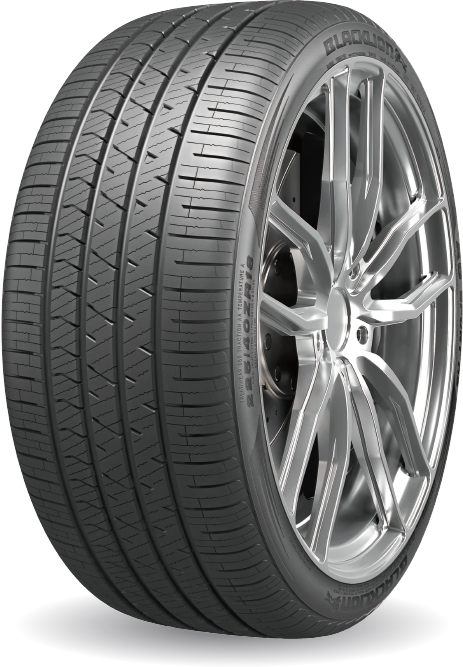

The A5 SPORT AS is an all-season ultra high-performance tire that combines handling performance, ride comfort, and all-season capability. It delivers responsive steering and stable handling, while reducing vibration and noise, and delivers dependable traction on wet and snowy roads.

Technical profile

Speed symbol: W, Y

Tread width: 205-275

Series: 35-45

Inch: 17-20

UTQG: 560 AA A

Features

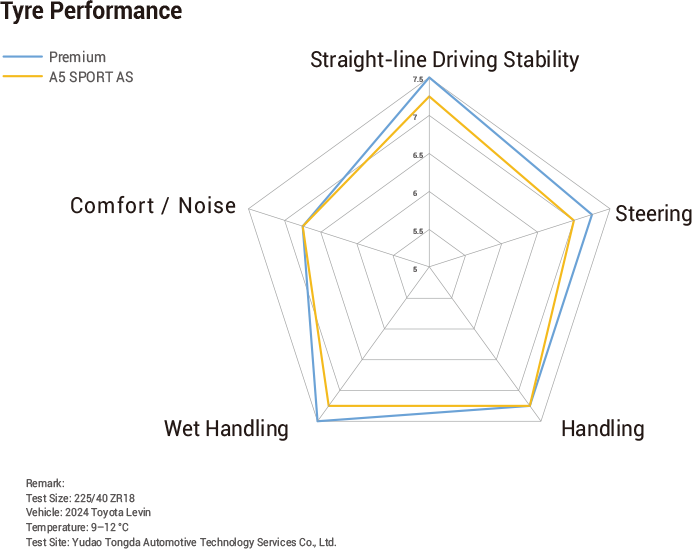

Performance
Performance	Touring	Ultra High Performance	Highway Teerrain	All Terrain	Rugged Terrain
Tread Wear	10	8	9	9	8
Wet Breaking	10	10	9	9	9
Dry Breaking	10	10	9	9	9
Handling	8	10	9	8	8
Ride Comfort	10	8	9	8	7
Quiet Ride	10	9	9	8	7
winter/Snow	7	7	7	9	8
Ice	/	/	/	9	8

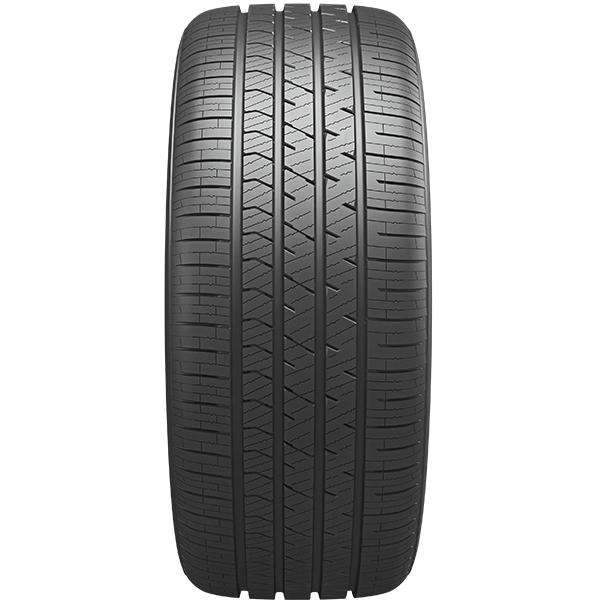

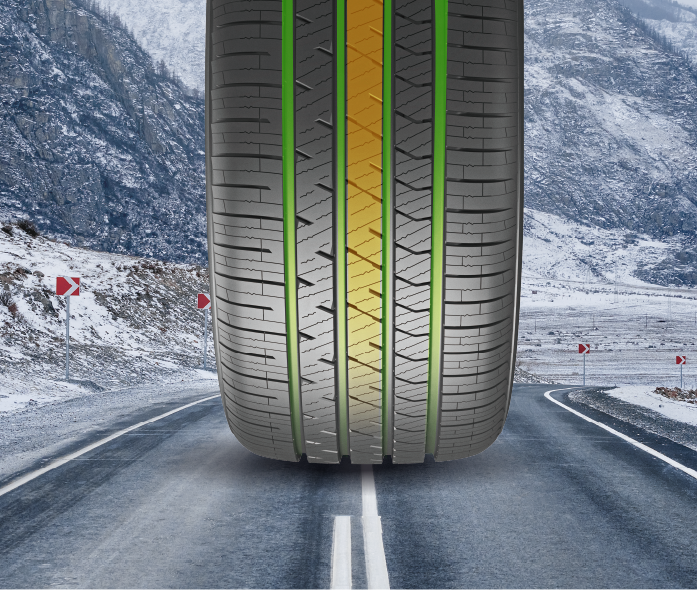

Shoulder Design

Grooves throughout the continuous ribs improves water drainage while maintaining steering responsiveness.
Central Chamfered Cross Grooves

Prevents tread block edge damage, improves wear resistance, and enhances water drainage.

Precision Sipes

Enhances traction on wet and snowy roads, boosting all-season driving confidence.
Central Tread Blocks

Continuous tread blocks reduce contact deformation, minimizes rebound air vibration, and enhances ride comfort.

Tire Parameters

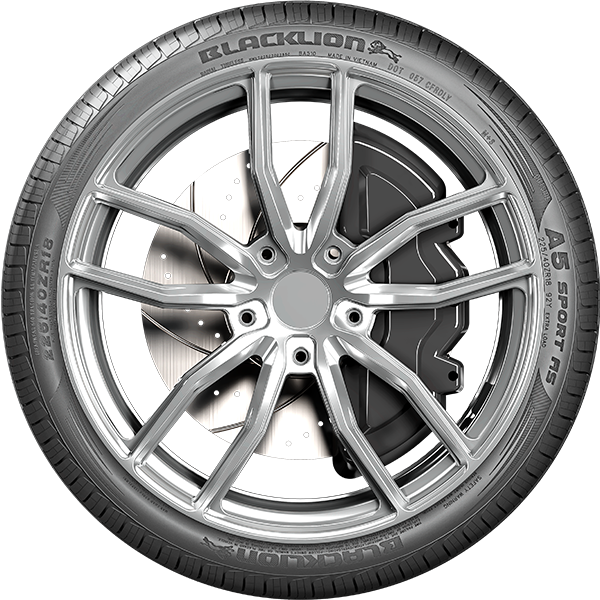

How to read your Tire

ALL

20"

19"

18"

17"

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	35	245/35R20	245	95W	XL	81/2J	8J	91/2J	-	1521	50	686	560 AA A	50K
20	40	275/40R20	275	106Y	XL	9.5	9	11	-	2094	50	736	560 AA A	50K
20	45	255/45R20	255	105Y	XL	8.5	8	9.5	-	2039	50	746	560 AA A	50K
20	45	245/45R20	245	103W	XL	8	7.5	9	-	1929	50	736	560 AA A	50K
19	40	245/40R19	245	98W	XL	8.5	8	9.5	-	1653	50	695	560 AA A	50K
19	40	235/40R19	235	96W	XL	8.5	8	9.5	-	1565	50	679	560 AA A	50K
19	40	225/40R19	225	93Y	XL	8	7.5	9	-	1433	50	671	560 AA A	50K
19	45	245/45R19	245	102W	XL	8	7.5	9	-	1874	50	711	560 AA A	50K
18	40	245/40R18	245	97Y	XL	8.5	8	9.5	-	1609	50	661	560 AA A	50K
18	40	235/40R18	235	95W	XL	8.5	8	9.5	-	1521	50	653	560 AA A	50K
18	40	225/40ZR18	225	92Y	XL	8	7.5	9	7.5	1389	50	645	560 AA A	50K
18	45	245/45R18	245	100Y	XL	8	7.5	9	-	1764	50	685	560 AA A	50K
18	45	235/45R18	235	98W	XL	8	7.5	9	-	1653	50	677	560 AA A	50K
18	45	225/45R18	225	95W	XL	7.5	7	8.5	-	1521	50	667	560 AA A	50K
17	40	205/40R17	205	84W	XL	7.5	7	8	-	1102	50	602	560 AA A	50K
17	45	245/45R17	245	99Y	XL	8	7.5	9	-	1709	50	660	560 AA A	50K
17	45	235/45R17	235	97W	XL	8	7.5	9	-	1609	50	652	560 AA A	50K
17	45	225/45R17	225	94W	XL	7.5	7	8.5	-	1477	50	642	560 AA A	50K
17	45	215/45R17	215	91W	XL	7	7.5	8	-	1356	50	634	560 AA A	50K
17	45	205/45R17	205	88W	XL	7	6.5	7.5	-	1325	50	624	560 AA A	50K

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	35	245/35R20	245	95W	XL	81/2J	8J	91/2J	-	1521	50	686	560 AA A	50K
20	40	275/40R20	275	106Y	XL	9.5	9	11	-	2094	50	736	560 AA A	50K
20	45	255/45R20	255	105Y	XL	8.5	8	9.5	-	2039	50	746	560 AA A	50K
20	45	245/45R20	245	103W	XL	8	7.5	9	-	1929	50	736	560 AA A	50K

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
19	40	245/40R19	245	98W	XL	8.5	8	9.5	-	1653	50	695	560 AA A	50K
19	40	235/40R19	235	96W	XL	8.5	8	9.5	-	1565	50	679	560 AA A	50K
19	40	225/40R19	225	93Y	XL	8	7.5	9	-	1433	50	671	560 AA A	50K
19	45	245/45R19	245	102W	XL	8	7.5	9	-	1874	50	711	560 AA A	50K

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
18	40	245/40R18	245	97Y	XL	8.5	8	9.5	-	1609	50	661	560 AA A	50K
18	40	235/40R18	235	95W	XL	8.5	8	9.5	-	1521	50	653	560 AA A	50K
18	40	225/40ZR18	225	92Y	XL	8	7.5	9	7.5	1389	50	645	560 AA A	50K
18	45	245/45R18	245	100Y	XL	8	7.5	9	-	1764	50	685	560 AA A	50K
18	45	235/45R18	235	98W	XL	8	7.5	9	-	1653	50	677	560 AA A	50K
18	45	225/45R18	225	95W	XL	7.5	7	8.5	-	1521	50	667	560 AA A	50K

inch	Series	Size		LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
17	40	205/40R17	205	84W	XL	7.5	7	8	-	1102	50	602	560 AA A	50K
17	45	245/45R17	245	99Y	XL	8	7.5	9	-	1709	50	660	560 AA A	50K
17	45	235/45R17	235	97W	XL	8	7.5	9	-	1609	50	652	560 AA A	50K
17	45	225/45R17	225	94W	XL	7.5	7	8.5	-	1477	50	642	560 AA A	50K
17	45	215/45R17	215	91W	XL	7	7.5	8	-	1356	50	634	560 AA A	50K
17	45	205/45R17	205	88W	XL	7	6.5	7.5	-	1325	50	624	560 AA A	50K
