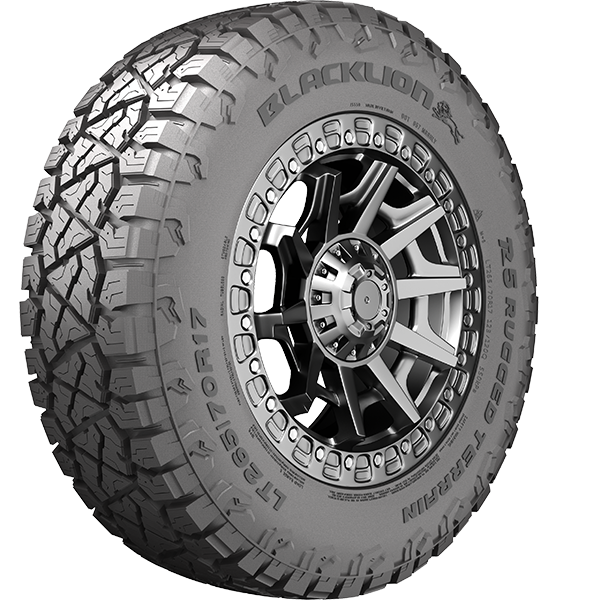

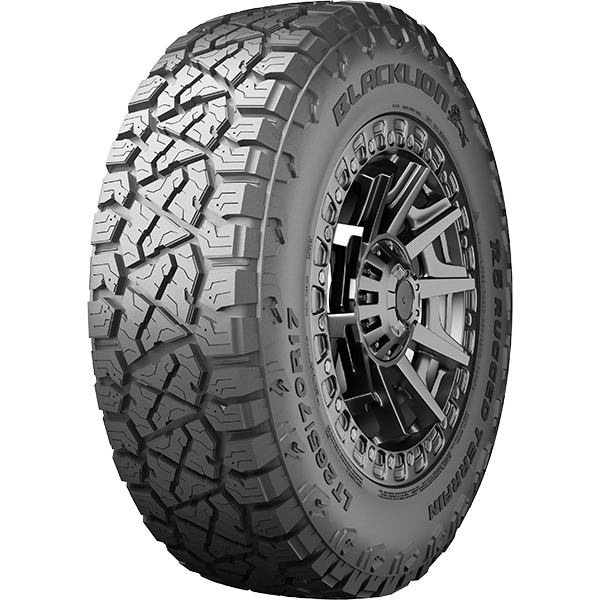

The R5 RT rugged terrain tire features a hybrid AT/MT design, achieving an effective balance between off-road performance and on-road comfort, particularly noticeable in dirt, sand, mud, and snow conditions.

Its reinforced tread structure and aggressive sidewall styling ensure dependable traction and durability on rough terrain, while still offering stable handling and lower noise levels compared with traditional AT and MT tires.

Technical profile

Speed symbol: Q, S, T

Tread width: 265-305

Series: 55-75

Inch: 17-22

UTQG: 600 A B

Features

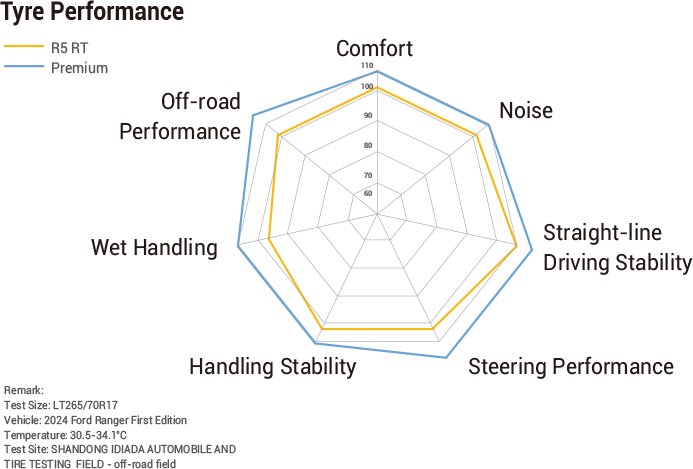

Performance
Performance	Touring	Ultra High Performance	Highway Teerrain	All Terrain	Rugged Terrain
Tread Wear	10	8	9	9	8
Wet Breaking	10	10	9	9	9
Dry Breaking	10	10	9	9	9
Handling	8	10	9	8	8
Ride Comfort	10	8	9	8	7
Quiet Ride	10	9	9	8	7
winter/Snow	7	7	7	9	8
Ice	/	/	/	9	8

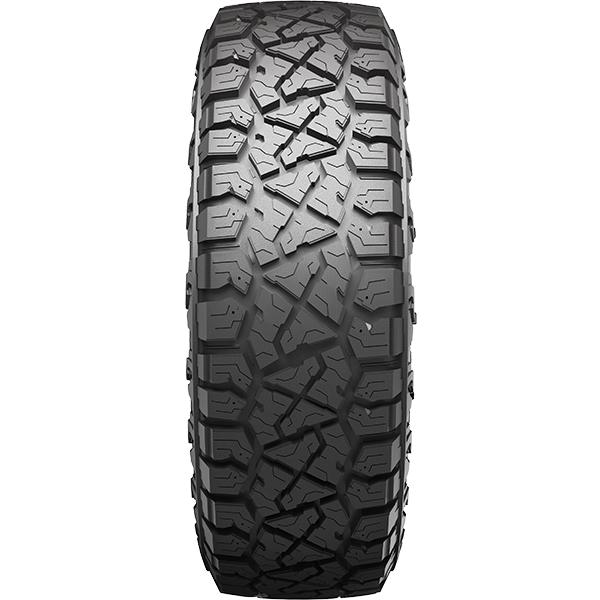

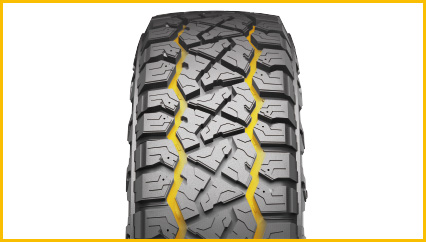

Enhanced On & Off-Road Performance

Deep grooves combined with staggered tread blocks create additional biting edges, enhancing traction and stability across on and off-road . Reduces road noise and improves driving comfort with an optimized tread pitch arrangement.
Enhanced Wet & Snow Traction

Tread blocks with closely spaced sipes improves traction on wet and snowy roads . Unique tread patten and siping layout disperses water efficiently, reducing the risk of hydroplaning.

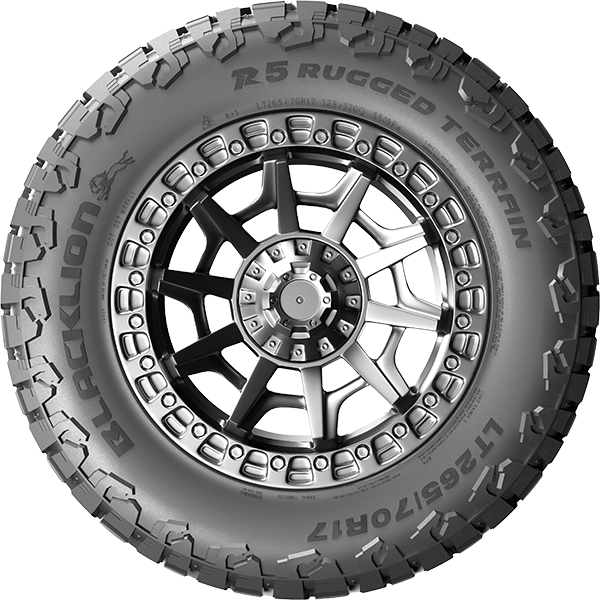

Aggressive Sidewall Design and Optimized Footprint

Features a tough 3-ply polyester construction (on most LT-metric and flotation sizes) to enhance durability, impact resistance, and handling. Optimizes contact pressure distribution under varying loads to reduce irregular wear and extend tread life.

Stone Ejector Groove Design

Actively pushes stones out of the grooves to protect the tread，reducing tread damage.
All-Weather Performance

Supports year-round driving in various weather conditions. Features pre-drilled studdable holes for enhanced winter traction. Improves handling and braking performance with 3D sipes.

Tire Parameters

How to read your Tire

ALL

22"

18"

17"

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	55	275/55R20	117T	XL	8.5	7.5	9.5	2833	50	810	600 A B	60K
20	60	275/60R20	116T	XL	8	9.5	9.5	2756	50	838	600 A B	60K
18	65	275/65R18	116T	XL	8	7.5	9.5	2756	50	815	600 A B	60K
17	70	265/70R17	116T	XL	8	7	9	2756	50	804	600 A B	60K

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
22		37×13.50R22LT	128Q	F	11	9.5	12	3970	80	928	/	50K
22		37×12.50R22LT	127Q	F	10	8.5	11	3860	80	928	/	50K
22		35×12.50R22LT	121Q	F	10	8.5	11	3195	80	877	/	50K
20	55	LT305/55R20	125/122Q	F	9.5	9	11	3640	80	844	/	50K
20	65	LT275/65R20	126/123Q	E	8	8	9.5	3750	80	866	/	50K
20		37×12.50R20LT	126Q	E	10	8.5	11	3750	65	928	/	50K
20		35×13.50R20LT	126Q	F	11	9.5	12	3750	80	877	/	50K
20		35×12.50R20LT	125Q	F	10	8.5	11	3640	80	877	/	50K
20		33×12.50R20LT	119Q	F	10	8.5	11	3000	80	826	/	50K
18	65	LT275/65R18	123/120Q	E	8	8	9.5	3450	80	815	/	50K
18	65	LT265/65R18	122/119Q	E	8	8	9.5	3305	80	801	/	50K
18	70	LT275/70R18	125/122Q	E	8	7	9	3640	80	843	/	50K
18	70	LT265/70R18	124/121Q	E	8	7	9	3525	80	829	/	50K
18		37×12.50R18LT	128Q	E	10	8	10.5	3970	65	928	/	50K
18		35×12.50R18LT	128Q	F	10	8.5	11	3970	80	877	/	50K
18		33×12.50R18LT	122Q	F	10	8.5	11	3305	80	826	/	50K
17	70	LT285/70R17	126/123Q	E	8.5	7.5	9.5	3750	80	832	/	50K
17	70	LT265/70R17	123/120Q	E	8	7	8.5	3415	80	804	/	50K
17		37×12.50R17LT	128S	E	10	8	10.5	3970	65	928	/	50K
17		35×12.50R17LT	125Q	E	10	8	10.5	3640	65	877	/	50K

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
22		37×13.50R22LT	128Q	F	11	9.5	12	3970	80	928	/	50K
22		37×12.50R22LT	127Q	F	10	8.5	11	3860	80	928	/	50K
22		35×12.50R22LT	121Q	F	10	8.5	11	3195	80	877	/	50K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	55	275/55R20	117T	XL	8.5	7.5	9.5	2833	50	810	600 A B	60K
20	60	275/60R20	116T	XL	8	9.5	9.5	2756	50	838	600 A B	60K

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	55	LT305/55R20	125/122Q	F	9.5	9	11	3640	80	844	/	50K
20	65	LT275/65R20	126/123Q	E	8	8	9.5	3750	80	866	/	50K
20		37×12.50R20LT	126Q	E	10	8.5	11	3750	65	928	/	50K
20		35×13.50R20LT	126Q	F	11	9.5	12	3750	80	877	/	50K
20		35×12.50R20LT	125Q	F	10	8.5	11	3640	80	877	/	50K
20		33×12.50R20LT	119Q	F	10	8.5	11	3000	80	826	/	50K

inch

Series

Size

LI&SS

STD Rim

Rim Width Min

Rim Width Max

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

Limit Warranty

275/65R18

116T

7.5

9.5

2756

815

600 A B

60K

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
18	65	LT275/65R18	123/120Q	E	8	8	9.5	3450	80	815	/	50K
18	65	LT265/65R18	122/119Q	E	8	8	9.5	3305	80	801	/	50K
18	70	LT275/70R18	125/122Q	E	8	7	9	3640	80	843	/	50K
18	70	LT265/70R18	124/121Q	E	8	7	9	3525	80	829	/	50K
18		37×12.50R18LT	128Q	E	10	8	10.5	3970	65	928	/	50K
18		35×12.50R18LT	128Q	F	10	8.5	11	3970	80	877	/	50K
18		33×12.50R18LT	122Q	F	10	8.5	11	3305	80	826	/	50K
