A5 Touring All-Season - JINYU Tire

0°
30°
60°
90°

All Season

comfortable

Wet braking

Dry braking

Fuel Efficiency

M + S

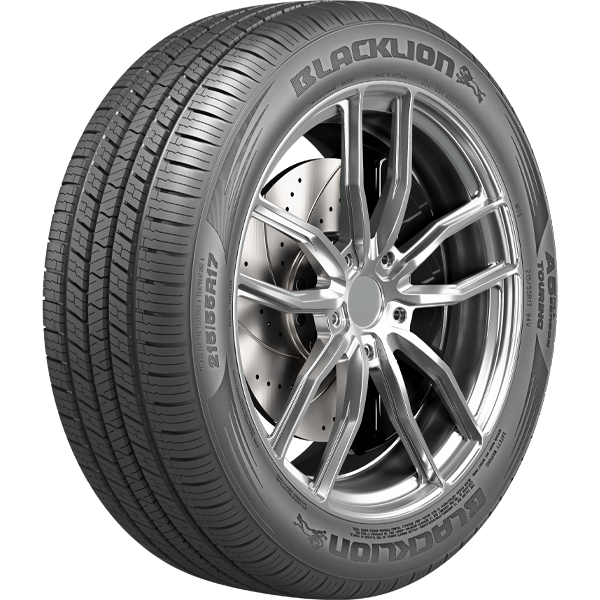

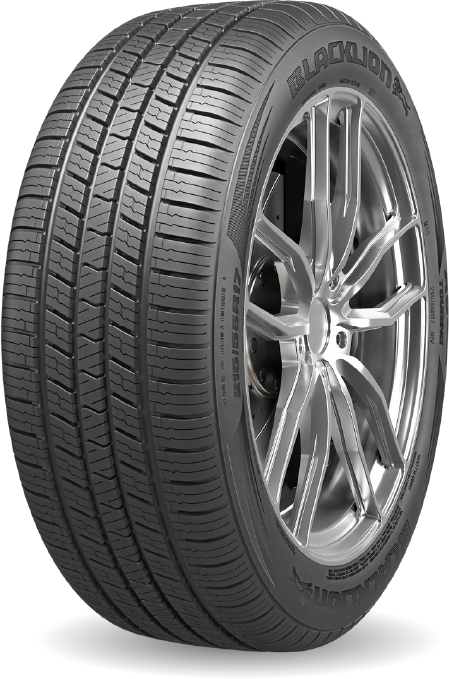

The A5 touring tire is a standard touring all-season tire that delivers a long-lasting, comfortable driving product and offers confidence-inspired handling and stability day in and day out, and a provides a mileage warranty up to 70K miles.

Technical profile

Speed symbol: H, V

Tread width: 185 -245

Series: 50-65

Inch: 15-20

UTQG: 740/A/A

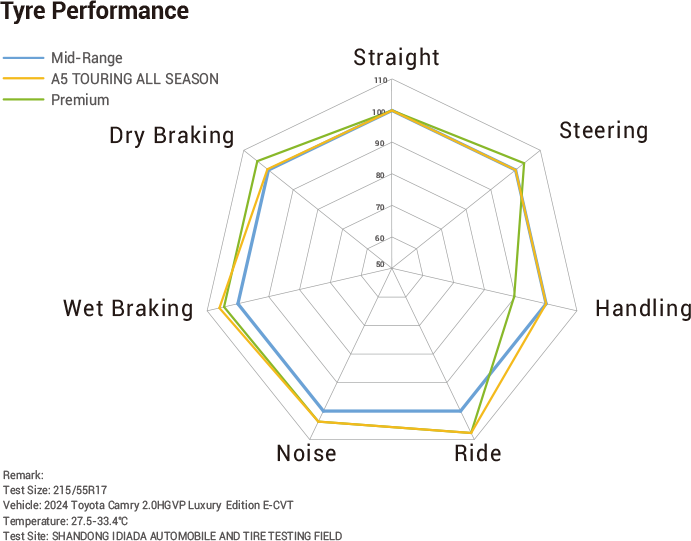

Features

Wear

9
Breaking

9
Handling

8
Ride Comfort

8
Quiet Ride

8
Fuel Efficiency

9

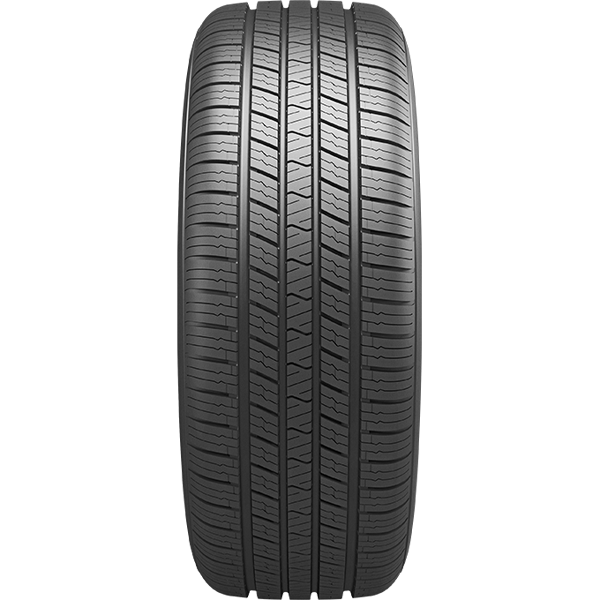

Irregular Pitch Arrangement

Composite irregular pitch arrangement combination for tread pattern effectively reduce noise;
New Generation Optimized Profile

Provides a larger footprint for even wear and a better treadlife;
The Optimized Structure and Compound

Reduces energy loss, improves tire rolling resistance and fuel efficiency.

New Generation of Tread Compound

Using a unique polymer combination to provide better wear resistance；

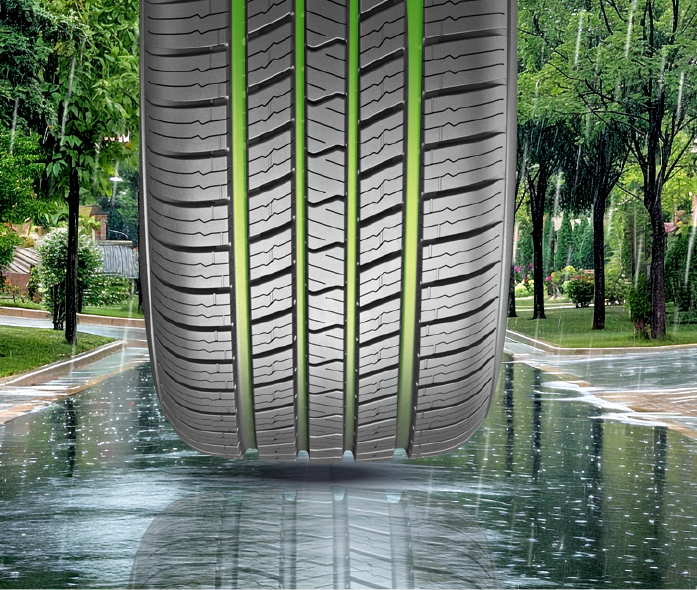

Four Straight Wide Grooves and Lateral Grooves

Move water away quickly, provides better wet braking performance and hydroplaning resistance;

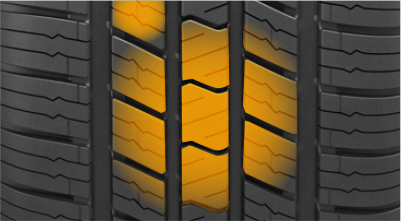

The New Generation of Steel Cutting Technology

Used on the continuous center rib to maintain the continuous rigidity of the pattern block, ensuring excellent dry handling stability and providing better wet grip;

Tire Parameters

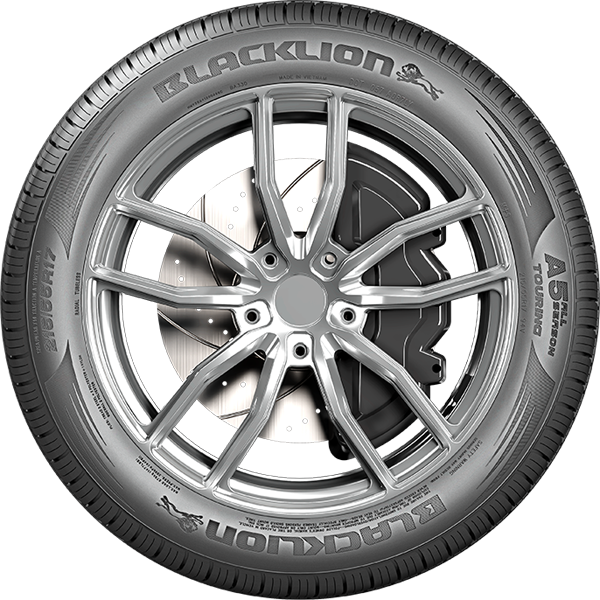

How to read your Tire

All

20'

19'

18'

17'

16'

15'

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	50	245/50R20	102V		7.5	7	8.5	8.3	1874	44	754	740/A/A	75K
20	55	235/55R20	102V		7.5	6.5	8.5	8.3	1874	44	766	740/A/A	75K
19	55	225/55R19	99V		7	6	8	8.3	1709	44	731	740/A/A	75K
19	55	235/55R19	105V	XL	7.5	6.5	8.5	8.3	2039	50	741	740/A/A	75K
18	50	225/50R18	95V		7	6	8	8.3	1521	44	683	740/A/A	75K
18	50	235/50R18	97V		7.5	6.5	8.5	8.3	1609	44	693	740/A/A	75K
18	55	215/55R18	95H		7	6	7.5	8.3	1521	44	693	740/A/A	75K
18	55	225/55R18	98V		7	6	8	8.3	1653	44	705	740/A/A	75K
18	55	235/55R18	100V		7.5	6.5	8.5	8.3	1764	44	715	740/A/A	75K
18	60	225/60R18	100H		6.5	6	8	8.3	1764	44	727	740/A/A	75K
18	60	235/60R18	107V	XL	7	6.5	8.5	8.3	2149	50	739	740/A/A	75K
17	50	205/50R17	89V		6.5	5.5	7.5	8.3	1279	44	638	740/A/A	75K
17	50	215/50R17	93V		7	6	7.5	8.3	1433	44	648	740/A/A	75K
17	50	225/50R17	94V		7	6	8	8.3	1477	44	658	740/A/A	75K
17	50	235/50R17	96V		7.5	6.5	8.5	8.3	1565	44	668	740/A/A	75K
17	55	215/55R17	94V		7	6	7.5	8.3	1477	44	668	740/A/A	75K
17	55	225/55R17	97V		7	6	8	8.3	1609	44	680	740/A/A	75K
17	55	235/55R17	99V		7.5	6.5	8.5	8.3	1709	44	690	740/A/A	75K
17	60	215/60R17	96H		6.5	6	7.5	8.3	1565	44	690	740/A/A	75K
17	60	225/60R17	99H		6.5	6	8	8.3	1709	44	702	740/A/A	75K
17	60	235/60R17	102H		7	6.5	8.5	8.3	1874	44	714	740/A/A	75K
17	65	215/65R17	99H		6.5	6	7.5	8.3	1709	44	712	740/A/A	75K
17	65	225/65R17	102H		6.5	6	8	8.3	1874	44	724	740/A/A	75K
16	50	205/50R16	87V		6.5	5.5	7.5	8.3	1201	44	612	740/A/A	75K
16	55	195/55R16	87V		6	5.5	7	7.8	1201	44	620	740/A/A	75K
16	55	205/55R16	91V		6.5	5.5	7.5	8.3	1356	44	632	740/A/A	75K
16	55	215/55R16	97H	XL	7	6	7.5	8.3	1609	50	642	740/A/A	75K
16	60	205/60R16	92V		6	5.5	7.5	8.3	1389	44	652	740/A/A	75K
16	60	215/60R16	95V		6.5	6	7.5	8.3	1521	44	664	740/A/A	75K
16	60	225/60R16	98H		6.5	6	8	8.3	1653	44	676	740/A/A	75K
16	65	205/65R16	95H		6	5.5	7.5	8.3	1521	44	672	740/A/A	75K
16	65	215/65R16	98H		6.5	6	7.5	8.3	1653	44	686	740/A/A	75K
16	65	225/65R16	100H			6	8	8.3	1764	44	698	740/A/A	75K
16	65	235/65R16	103H		7	6.5	8.5	8.3	1929	44	712	740/A/A	75K
15	60	195/60R15	88H		6	5.5	7	7.8	1235	44	615	740/A/A	75K
15	65	185/65R15	88H		5.5	5	6.5	7.8	1235	44	621	740/A/A	75K
15	65	195/65R15	91H		6	5.5	7	7.8	1356	44	635	740/A/A	75K
15	65	205/65R15	94H		6	5.5	7.5	8.3	1477	44	647	740/A/A	75K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	50	245/50R20	102V		7.5	7	8.5	8.3	1874	44	754	740/A/A	75K
20	55	235/55R20	102V		7.5	6.5	8.5	8.3	1874	44	766	740/A/A	75K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
19	55	225/55R19	99V		7	6	8	8.3	1709	44	731	740/A/A	75K
19	55	235/55R19	105V	XL	7.5	6.5	8.5	8.3	2039	50	741	740/A/A	75K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
18	50	225/50R18	95V		7	6	8	8.3	1521	44	683	740/A/A	75K
18	50	235/50R18	97V		7.5	6.5	8.5	8.3	1609	44	693	740/A/A	75K
18	55	215/55R18	95H		7	6	7.5	8.3	1521	44	693	740/A/A	75K
18	55	225/55R18	98V		7	6	8	8.3	1653	44	705	740/A/A	75K
18	55	235/55R18	100V		7.5	6.5	8.5	8.3	1764	44	715	740/A/A	75K
18	60	225/60R18	100H		6.5	6	8	8.3	1764	44	727	740/A/A	75K
18	60	235/60R18	107V	XL	7	6.5	8.5	8.3	2149	50	739	740/A/A	75K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
17	50	205/50R17	89V		6.5	5.5	7.5	8.3	1279	44	638	740/A/A	75K
17	50	215/50R17	93V		7	6	7.5	8.3	1433	44	648	740/A/A	75K
17	50	225/50R17	94V		7	6	8	8.3	1477	44	658	740/A/A	75K
17	50	235/50R17	96V		7.5	6.5	8.5	8.3	1565	44	668	740/A/A	75K
17	55	215/55R17	94V		7	6	7.5	8.3	1477	44	668	740/A/A	75K
17	55	225/55R17	97V		7	6	8	8.3	1609	44	680	740/A/A	75K
17	55	235/55R17	99V		7.5	6.5	8.5	8.3	1709	44	690	740/A/A	75K
17	60	215/60R17	96H		6.5	6	7.5	8.3	1565	44	690	740/A/A	75K
17	60	225/60R17	99H		6.5	6	8	8.3	1709	44	702	740/A/A	75K
17	60	235/60R17	102H		7	6.5	8.5	8.3	1874	44	714	740/A/A	75K
17	65	215/65R17	99H		6.5	6	7.5	8.3	1709	44	712	740/A/A	75K
17	65	225/65R17	102H		6.5	6	8	8.3	1874	44	724	740/A/A	75K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
16	50	205/50R16	87V		6.5	5.5	7.5	8.3	1201	44	612	740/A/A	75K
16	55	195/55R16	87V		6	5.5	7	7.8	1201	44	620	740/A/A	75K
16	55	205/55R16	91V		6.5	5.5	7.5	8.3	1356	44	632	740/A/A	75K
16	55	215/55R16	97H	XL	7	6	7.5	8.3	1609	50	642	740/A/A	75K
16	60	205/60R16	92V		6	5.5	7.5	8.3	1389	44	652	740/A/A	75K
16	60	215/60R16	95V		6.5	6	7.5	8.3	1521	44	664	740/A/A	75K
16	60	225/60R16	98H		6.5	6	8	8.3	1653	44	676	740/A/A	75K
16	65	205/65R16	95H		6	5.5	7.5	8.3	1521	44	672	740/A/A	75K
16	65	215/65R16	98H		6.5	6	7.5	8.3	1653	44	686	740/A/A	75K
16	65	225/65R16	100H		6.5	6	8	8.3	1764	44	698	740/A/A	75K
16	65	235/65R16	103H		7	6.5	8.5	8.3	1929	44	712	740/A/A	75K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
15	60	195/60R15	88H		6	5.5	7	7.8	1235	44	615	740/A/A	75K
15	65	185/65R15	88H		5.5	5	6.5	7.8	1235	44	621	740/A/A	75K
15	65	195/65R15	91H		6	5.5	7	7.8	1356	44	635	740/A/A	75K
15	65	205/65R15	94H		6	5.5	7.5	8.3	1477	44	647	740/A/A	75K
