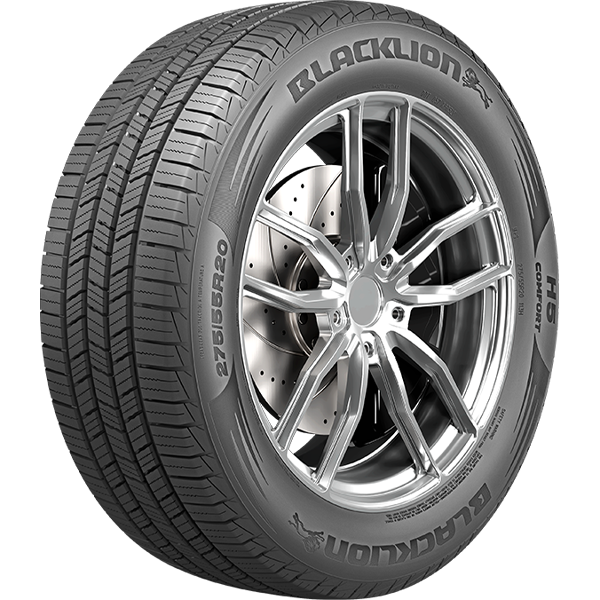

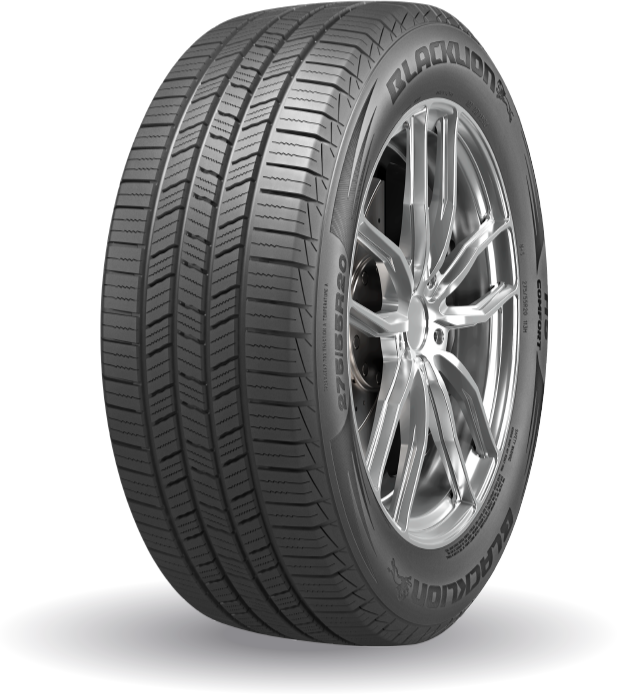

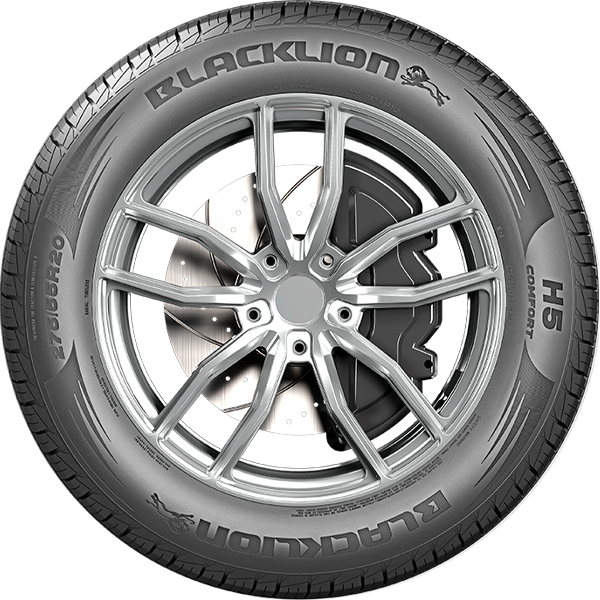

H5 Comfort - JINYU Tire - Time Tells Quality

0°
30°
60°
90°

All Season

Highway Terrain

Wet braking

Dry braking

M + S

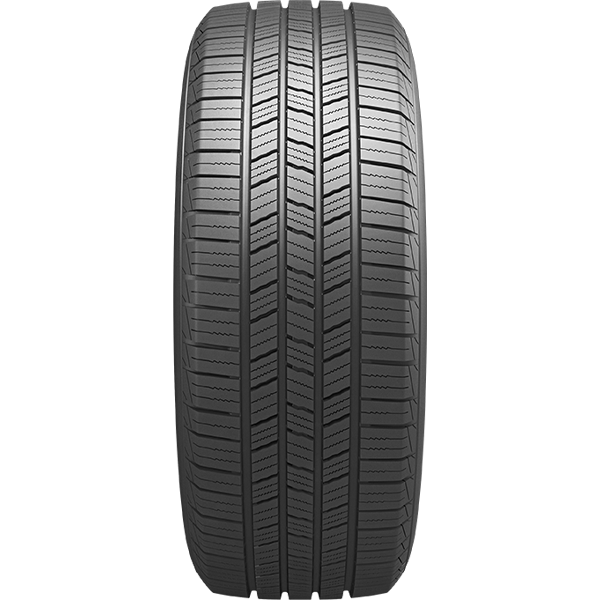

As a SUV tire, H5 provides greater mileage (65K miles) through specialized treadwear, no matter the season.

Combining the tread design with its compound provides a smooth, powerful ride and straightline stability for highway driving.

Technical profile

Speed symbol: S,T,H,V

Tread width: 215-275

Series: 50-75

Inch: 15-20

UTQG: 700/A/A

Mileage: PC---65K,LT---50K

Features

Wear

8
Breaking

8
Handling

7
Ride Comfort

8
Quiet Ride

8
Fuel Efficiency

9

Reinforced Rib Design

For the center tread block improves its rigidity, providing excellent handling and straight-line stability;
Four Wide Grooves Design

Improves water dispersion and safety performance;
New Compound

Improves longevity and durability of the tire.

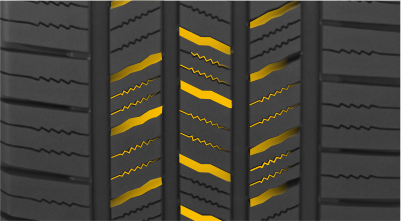

The Horizontal Grooves and 3D Sipes Design

Improve water breaking ability and excellent wet performance.

FEA Simulation

Is applied to optimize pattern pitch sequences, reduce noise, and delivers a quiet and comfortable ride.
Optimized Profile Design

Optimized profile design to achieve excellent footprint and larger ground contact area for enhanced grip;

Tire Parameters

How to read your Tire

All

20'

19'

18'

17'

16'

15'

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	50	255/50R20	105V		8	7	9	9.8	2039	44	764	700/A/A	65K
20	50	265/50R20	107V		8.5	7.5	9.5	9.8	2149	44	774	700/A/A	65K
20	55	255/55R20	110V	XL	8	7	9	10.1	2337	50	788	700/A/A	65K
20	55	275/55R20	113H		8.5	7.5	9.5	10.1	2535	44	810	700/A/A	65K
20	60	275/60R20	115H		8	7.5	9.5	10.1	2679	44	838	700/A/A	65K
19	55	245/55R19	103V		7.5	7	8.5	9.8	1929	44	753	700/A/A	65K
19	60	255/60R19	109H		7.5	7	9	9.8	2271	44	789	700/A/A	65K
18	55	255/55R18	109V	XL	8	7	9	9.8	2271	50	737	700/A/A	65K
18	60	235/60R18	103V		7	6.5	8.5	9.8	1929	44	739	700/A/A	65K
18	60	245/60R18	105H		7	7	8.5	9.8	2039	44	751	700/A/A	65K
18	60	265/60R18	110H		8	7.5	9.5	10.1	2337	44	775	700/A/A	65K
18	65	235/65R18	106V		7	6.5	8.5	9.8	2094	44	763	700/A/A	65K
18	65	255/65R18	111H		7.5	7	9	10.1	2403	44	789	700/A/A	65K
18	65	265/65R18	114H		8	7.5	9.5	10.1	2601	44	801	700/A/A	65K
18	65	275/65R18	116H		8	7.5	9.5	10.1	2756	44	815	700/A/A	65K
17	65	225/65R17	102H		6.5	6	8	9.8	1874	44	724	700/A/A	65K
17	65	235/65R17	104H		7	6.5	8.5	9.8	1984	44	738	700/A/A	65K
17	65	245/65R17	107H		7	7	8.5	9.8	2149	44	750	700/A/A	65K
17	65	255/65R17	110T		7.5	7	9	10.1	2337	44	764	700/A/A	65K
17	65	265/65R17	112T		8	7.5	9.5	10.1	2469	44	776	700/A/A	65K
17	70	245/70R17	110T		7	6.5	8	10.1	2337	44	776	700/A/A	65K
17	70	255/70R17	112T		7.5	6.5	8.5	10.1	2469	44	790	700/A/A	65K
17	70	265/70R17	115T		8	7	9	10.1	2679	44	804	700/A/A	65K
16	70	215/70R16	100H		6.5	5.5	7	9.8	1764	44	708	700/A/A	65K
16	70	225/70R16	103H		6.5	6	7.5	9.8	1929	44	722	700/A/A	65K
16	70	235/70R16	106T		7	6	8	9.8	2094	44	736	700/A/A	65K
16	70	245/70R16	107T		7	6.5	8	9.8	2149	44	750	700/A/A	65K
16	70	255/70R16	111T		7.5	6.5	8.5	10.1	2403	44	764	700/A/A	65K
16	70	265/70R16	112T		8	7	9	10.1	2469	44	778	700/A/A	65K
16	70	275/70R16	114H		8	7	9	10.1	2601	44	792	700/A/A	65K
16	75	245/75R16	111T		7	6.5	8	10.1	2403	44	774	700/A/A	65K
16	75	265/75R16	116T		7.5	7	9	10.1	2756	44	804	700/A/A	65K
15	75	235/75R15	109T	XL	6.5	6	8	9.8	2271	50	733	700/A/A	65K

inch	Series	Size	LI&SS	Load Range/Ply Rating		Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
18	70	LT265/70R18	124/121S	10PR	8	7	9	12.1	3525/3195	80	829	/	40K
17	70	LT245/70R17	119/116S	10PR	7	6.5	8	11.8	3000/2755	80	776	/	40K
17	70	LT265/70R17	123/120S	10PR	8	7	9	11.8	3415/3085	80	804	/	40K
17	75	LT245/75R17	121/118S	10PR	7	6.5	8	11.8	3195/2910	80	800	/	40K
17	80	LT235/80R17	120/117S	10PR	6.5	6	7.5	11.8	3085/2835	80	808	/	40K
16	75	LT225/75R16	115/112S	10PR	6	6	7.5	11.8	2680/2470	80	744	/	40K
16	75	LT245/75R16	120/116S	10PR	7	6.5	8	11.8	3042/2778	80	774	/	40K
16	75	LT265/75R16	123/120S	10PR	7.5	7	9	12.1	3415/3085	80	804	/	40K
16	65	235/65R16C	121/119S	10PR	7	6.5	7.5	9.5	3195/3000	83	712	/	40K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	50	255/50R20	105V		8	7	9	9.8	2039	44	764	700/A/A	65K
20	50	265/50R20	107V		8.5	7.5	9.5	9.8	2149	44	774	700/A/A	65K
20	55	255/55R20	110V	XL	8	7	9	10.1	2337	50	788	700/A/A	65K
20	55	275/55R20	113H		8.5	7.5	9.5	10.1	2535	44	810	700/A/A	65K
20	60	275/60R20	115H		8	7.5	9.5	10.1	2679	44	838	700/A/A	65K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
19	55	245/55R19	103V		7.5	7	8.5	9.8	1929	44	753	700/A/A	65K
19	60	255/60R19	109H		7.5	7	9	9.8	2271	44	789	700/A/A	65K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
18	55	255/55R18	109V	XL	8	7	9	9.8	2271	50	737	700/A/A	65K
18	60	235/60R18	103V		7	6.5	8.5	9.8	1929	44	739	700/A/A	65K
18	60	245/60R18	105H		7	7	8.5	9.8	2039	44	751	700/A/A	65K
18	60	265/60R18	110H		8	7.5	9.5	10.1	2337	44	775	700/A/A	65K
18	65	235/65R18	106V		7	6.5	8.5	9.8	2094	44	763	700/A/A	65K
18	65	255/65R18	111H		7.5	7	9	10.1	2403	44	789	700/A/A	65K
18	65	265/65R18	114H		8	7.5	9.5	10.1	2601	44	801	700/A/A	65K
18	65	275/65R18	116H		8	7.5	9.5	10.1	2756	44	815	700/A/A	65K

inch

Series

Size

LI&SS

Load Range/Ply Rating

Rim Width Min

Rim Width Max

Tread Depth（mm）

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

Limit Warranty

LT265/70R18

124/121S

10PR

12.1

3525/3195

829

40K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
17	65	225/65R17	102H		6.5	6	8	9.8	1874	44	724	700/A/A	65K
17	65	235/65R17	104H		7	6.5	8.5	9.8	1984	44	738	700/A/A	65K
17	65	245/65R17	107H		7	7	8.5	9.8	2149	44	750	700/A/A	65K
17	65	255/65R17	110T		7.5	7	9	10.1	2337	44	764	700/A/A	65K
17	65	265/65R17	112T		8	7.5	9.5	10.1	2469	44	776	700/A/A	65K
17	70	245/70R17	110T		7	6.5	8	10.1	2337	44	776	700/A/A	65K
17	70	255/70R17	112T		7.5	6.5	8.5	10.1	2469	44	790	700/A/A	65K
17	70	265/70R17	115T		8	7	9	10.1	2679	44	804	700/A/A	65K

inch	Series	Size	LI&SS	Load Range/Ply Rating		Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
17	70	LT245/70R17	119/116S	10PR	7	6.5	8	11.8	3000/2755	80	776	/	40K
17	70	LT265/70R17	123/120S	10PR	8	7	9	11.8	3415/3085	80	804	/	40K
17	75	LT245/75R17	121/118S	10PR	7	6.5	8	11.8	3195/2910	80	800	/	40K
17	80	LT235/80R17	120/117S	10PR	6.5	6	7.5	11.8	3085/2835	80	808	/	40K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
16	70	215/70R16	100H		6.5	5.5	7	9.8	1764	44	708	700/A/A	65K
16	70	225/70R16	103H		6.5	6	7.5	9.8	1929	44	722	700/A/A	65K
16	70	235/70R16	106T		7	6	8	9.8	2094	44	736	700/A/A	65K
16	70	245/70R16	107T		7	6.5	8	9.8	2149	44	750	700/A/A	65K
16	70	255/70R16	111T		7.5	6.5	8.5	10.1	2403	44	764	700/A/A	65K
16	70	265/70R16	112T		8	7	9	10.1	2469	44	778	700/A/A	65K
16	70	275/70R16	114H		8	7	9	10.1	2601	44	792	700/A/A	65K
16	75	245/75R16	111T		7	6.5	8	10.1	2403	44	774	700/A/A	65K
16	75	265/75R16	116T		7.5	7	9	10.1	2756	44	804	700/A/A	65K

inch	Series	Size	LI&SS	Load Range/Ply Rating		Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
16	75	LT225/75R16	115/112S	10PR	6	6	7.5	11.8	2680/2470	80	744	/	40K
16	75	LT245/75R16	120/116S	10PR	7	6.5	8	11.8	3042/2778	80	774	/	40K
16	75	LT265/75R16	123/120S	10PR	7.5	7	9	12.1	3415/3085	80	804	/	40K
16	65	235/65R16C	121/119S	10PR	7	6.5	7.5	9.5	3195/3000	83	712	/	40K

inch

Series

Size

LI&SS

STD Rim

Rim Width Min

Rim Width Max

Tread Depth（mm）

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

Limit Warranty

235/75R15

109T

6.5

9.8

2271

733

700/A/A

65K
