The X5 AT provides the perfect combination of attributes for all-terrain use for your pickup truck, CUV or SUV vehicle.

The X5 AT provides all terrain traction as well as responsive on-road handling. It provides an aggressive look and feel without sacrificing performance.

Technical profile

Speed symbol: Q,S,T,H,V

Tread width: 225-315

Series: 50-85

Inch: 15-20

UTQG: 640/A/B

Limited Mileage Warranty: PC-60K Miles, LT-50K Miles

Features

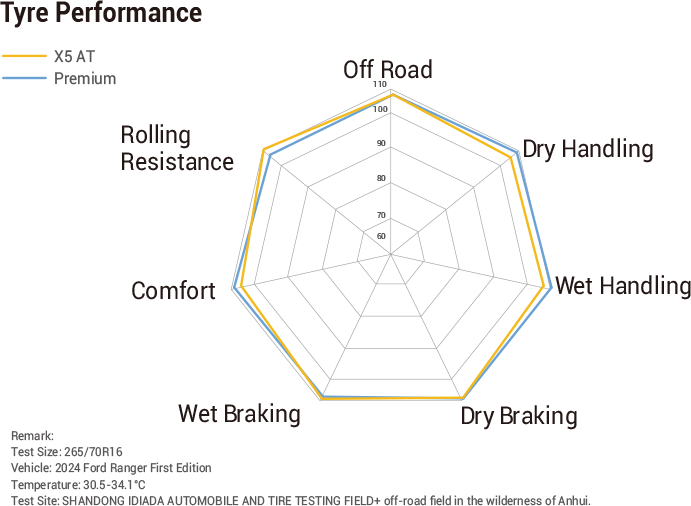

Performance
Performance	High Performance	Ultra High Performance	SUV-Ultra High Performance	Alpine Winter
Tread Wear	7	7	7	7
Wet Breaking	10	10	10	9
Dry Breaking	10	10	10	8
Handling	8	10	9	8
Ride Comfort	10	8	8	9
Quiet Ride	10	9	8	7
Snow	/	/	/	10
Ice	/	/	/	8

Performance
Performance	Touring	Ultra High Performance	Highway Teerrain	All Terrain	Rugged Terrain
Tread Wear	10	8	9	9	8
Wet Breaking	10	10	9	9	9
Dry Breaking	10	10	9	9	9
Handling	8	10	9	8	8
Ride Comfort	10	8	9	8	7
Quiet Ride	10	9	9	8	7
winter/Snow	7	7	7	9	8
Ice	/	/	/	9	8

The Profile Technology Ⅱ

Offers a squared shoulder and a broad footprint, optimizing handling and wear resistance.

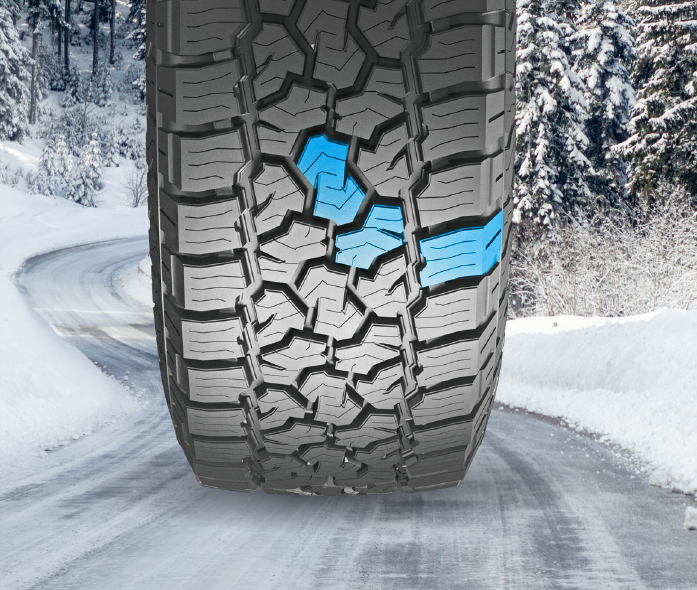

The Wide and Winding Main Grooves

Creates enhanced longitudinal drainage, for better traction on wet surfaces providing anti-hydroplaning performance.
The Central Mixed Tread Blocks

Improves All-Terrain performance and provides an excellent highway driving experience.

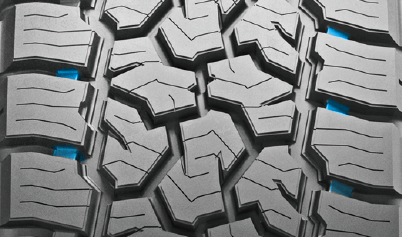

Closed or Semi-Closed Lateral Grooves

This groove design on the shoulder blocks reduces the noise from the center of the pattern from spreading outward. They also enhance the rididity of the shoulder blocks.

The Raised Side Pattern Under the Shoulder

Provides puncture resistance from foreign objects on rough roads. Also reduces sidewall wear and provides additional traction.

Staggered Tread Blocks on Shoulders

Provides enhanced traction, off-road performance, stable cornering and reduced noise.
Upgraded Tread Compound

Ensures dry and wet performance while also having excellent snow performance. Certified 3 Peak Mountain Snowflake symbol for all sizes classifies this tire as an All-Weather tire.
3D Sipes Design

Improves the rigidity of the tread blocks, increases the tread life, and enhances wet and snow performance.

Tire Parameters

How to read your Tire

All

20'

18'

17'

16'

15'

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
20	50	265/50R20	107V		8.5	7.5	9.5	10.6	2149	44	774	640 A B
20	55	275/55R20	113H		8.5	7.5	9.5	10.6	2535	44	810	640 A B
20	60	275/60R20	115H		8	7.5	9.5	10.6	2679	44	838	640 A B
18	60	265/60R18	114H	XL	8	7.5	9.5	10.6	2601	50	775	640 A B
18	65	275/65R18	116H		8	7.5	9.5	10.6	2756	44	815	640 A B
18	65	265/65R18	114T		8	7.5	9.5	10.6	2601	44	801	640 A B
17	65	265/65R17	116T	XL	8	7.5	9.5	10.6	2756	50	776	640 A B
17	65	245/65R17	111T	XL	7	7	8.5	10.6	2403	50	750	640 A B
17	70	265/70R17	115T		8	7	9	10.6	2679	44	804	640 A B
17	70	245/70R17	114T	XL	7	6.5	8	10.6	2601	50	776	640 A B
16	70	265/70R16	112T		8	7	9	10.6	2469	44	778	640 A B
16	70	255/70R16	115T	XL	7.5	6.5	8.5	10.6	2679	50	764	640 A B
16	70	245/70R16	111T	XL	7	6.5	8	10.6	2403	50	750	640 A B
16	70	235/70R16	109T	XL	7	6	8	10.6	2271	50	736	640 A B
16	75	265/75R16	116T		7.5	7	9	10.6	2756	44	804	640 A B
16	75	245/75R16	111T		7	6.5	8	10.6	2403	44	774	640 A B
15	75	235/75R15	109T	XL	6.5	6	8	10.6	2271	50	733	640 A B

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
20	65	LT275/65R20	126/123S	E	8	8	9.5	13.3	3750/3415	80	866	/
18	65	LT275/65R18	123/120S	E	8	8	9.5	13.3	3415/3085	80	801	/
18	70	LT275/70R18	125/122S	E	8	7	9	13.3	3640/3305	80	843	/
18	70	LT265/70R18	124/121S	E	8	7	9	13.3	3525/3195	80	829	/
17	70	LT315/70R17	126/123S	E	9.5	8	10.5	13.3	3750/3415	80	874	/
17	70	LT285/70R17	121/118S	E	8.5	7	9.5	13.3	3195/2910	80	832	/
17	70	LT265/70R17	121/118S	E	8	7	9	13.3	3195/2910	80	804	/
17	70	LT245/70R17	119/116S	E	7	6.5	8	13.3	3000/2755	80	776	/
17	75	LT245/75R17	121/118S	E	7	6.5	8	13.3	3195/2910	80	800	/
17	80	LT235/80R17	120/117R	E	6.5	6	7.5	13.3	3085/2835	80	808	/
16	75	LT285/75R16	126/123R	E	8	7.5	9.5	13.3	3750/3415	80	834	/
16	75	LT265/75R16	123/120S	E	7.5	7	9	13.3	3415/3085	80	804	/
16	75	LT245/75R16	120/116S	E	7	6.5	8	13.3	3042/2778	80	774	/
16	75	LT225/75R16	115/112S	E	6	6	7.5	13.3	2680/2470	80	744	/
16	85	LT235/85R16	120/116S	E	6.5	6	7.5	13.3	3042/2778	80	806	/
15		31×10.50R15LT	109Q	C	8.5	7	9	13.3	2270	50	775	/

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
20	50	265/50R20	107V		8.5	7.5	9.5	10.6	2149	44	774	640 A B
20	55	275/55R20	113H		8.5	7.5	9.5	10.6	2535	44	810	640 A B
20	60	275/60R20	115H		8	7.5	9.5	10.6	2679	44	838	640 A B

inch

Series

Size

LI&SS

Load Range/Ply Rating

STD Rim

Rim Width Min

Rim Width Max

Tread Depth（mm）

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

LT275/65R20

126/123S

9.5

13.3

3750/3415

866

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
18	60	265/60R18	114H	XL	8	7.5	9.5	10.6	2601	50	775	640 A B
18	65	275/65R18	116H		8	7.5	9.5	10.6	2756	44	815	640 A B
18	65	265/65R18	114T		8	7.5	9.5	10.6	2601	44	801	640 A B

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
18	65	LT275/65R18	123/120S	E	8	8	9.5	13.3	3415/3085	80	801	/
18	70	LT275/70R18	125/122S	E	8	7	9	13.3	3640/3305	80	843	/
18	70	LT265/70R18	124/121S	E	8	7	9	13.3	3525/3195	80	829	/

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
17	65	265/65R17	116T	XL	8	7.5	9.5	10.6	2756	50	776	640 A B
17	65	245/65R17	111T	XL	7	7	8.5	10.6	2403	50	750	640 A B
17	70	265/70R17	115T		8	7	9	10.6	2679	44	804	640 A B
17	70	245/70R17	114T	XL	7	6.5	8	10.6	2601	50	776	640 A B

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
17	70	LT315/70R17	126/123S	E	9.5	8	10.5	13.3	3750/3415	80	874	/
17	70	LT285/70R17	121/118S	E	8.5	7	9.5	13.3	3195/2910	80	832	/
17	70	LT265/70R17	121/118S	E	8	7	9	13.3	3195/2910	80	804	/
17	70	LT245/70R17	119/116S	E	7	6.5	8	13.3	3000/2755	80	776	/
17	75	LT245/75R17	121/118S	E	7	6.5	8	13.3	3195/2910	80	800	/
17	80	LT235/80R17	120/117R	E	6.5	6	7.5	13.3	3085/2835	80	808	/

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
16	70	265/70R16	112T		8	7	9	10.6	2469	44	778	640 A B
16	70	255/70R16	115T	XL	7.5	6.5	8.5	10.6	2679	50	764	640 A B
16	70	245/70R16	111T	XL	7	6.5	8	10.6	2403	50	750	640 A B
16	70	235/70R16	109T	XL	7	6	8	10.6	2271	50	736	640 A B
16	75	265/75R16	116T		7.5	7	9	10.6	2756	44	804	640 A B
16	75	245/75R16	111T		7	6.5	8	10.6	2403	44	774	640 A B

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
16	75	LT285/75R16	126/123R	E	8	7.5	9.5	13.3	3750/3415	80	834	/
16	75	LT265/75R16	123/120S	E	7.5	7	9	13.3	3415/3085	80	804	/
16	75	LT245/75R16	120/116S	E	7	6.5	8	13.3	3042/2778	80	774	/
16	75	LT225/75R16	115/112S	E	6	6	7.5	13.3	2680/2470	80	744	/
16	85	LT235/85R16	120/116S	E	6.5	6	7.5	13.3	3042/2778	80	806	/

inch

Series

Size

LI&SS

STD Rim

Rim Width Min

Rim Width Max

Tread Depth（mm）

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

235/75R15

109T

6.5

10.6

2271

733

640 A B

inch

Series

Size

LI&SS

Load Range/Ply Rating

STD Rim

Rim Width Min

Rim Width Max

Tread Depth（mm）

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

31×10.50R15LT

109Q

8.5

13.3

2270

775
