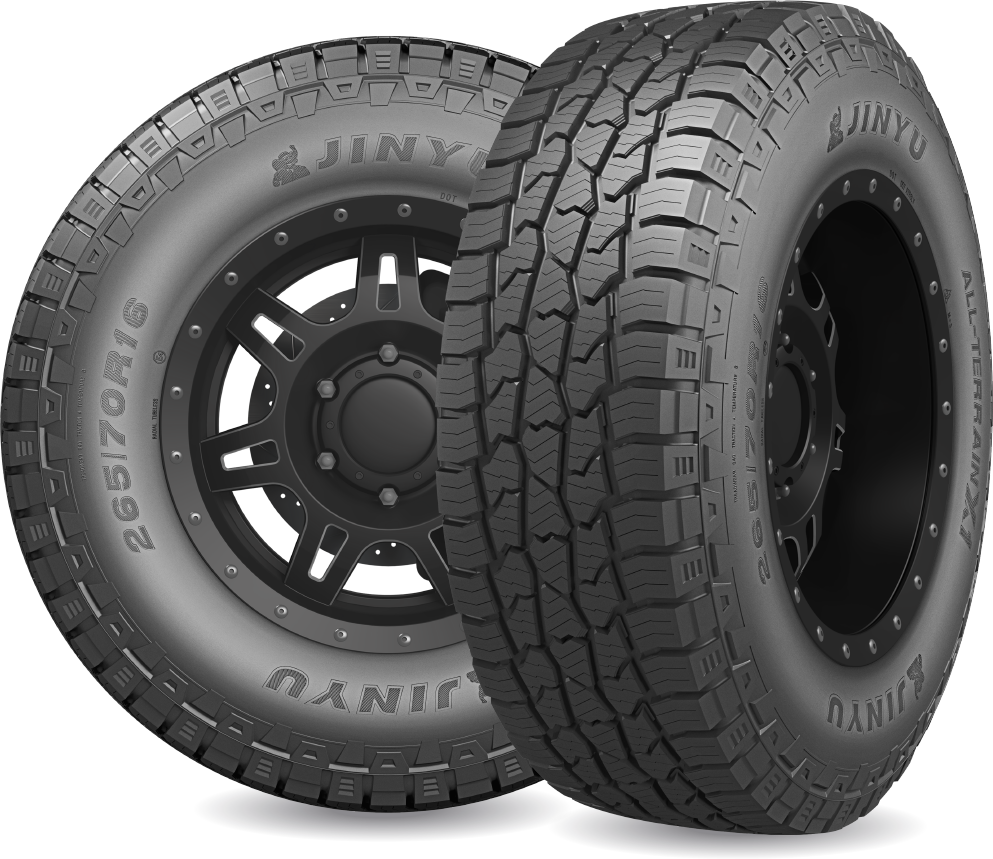

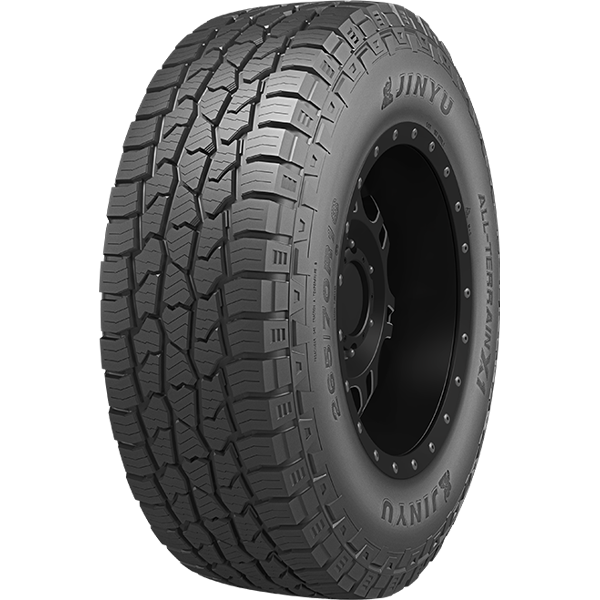

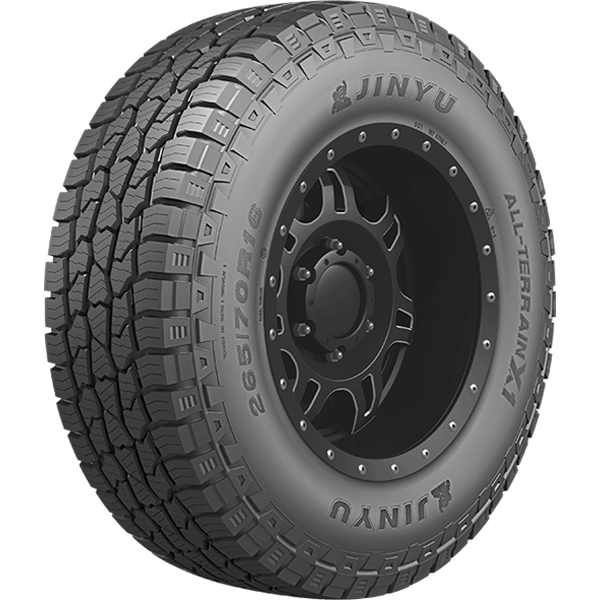

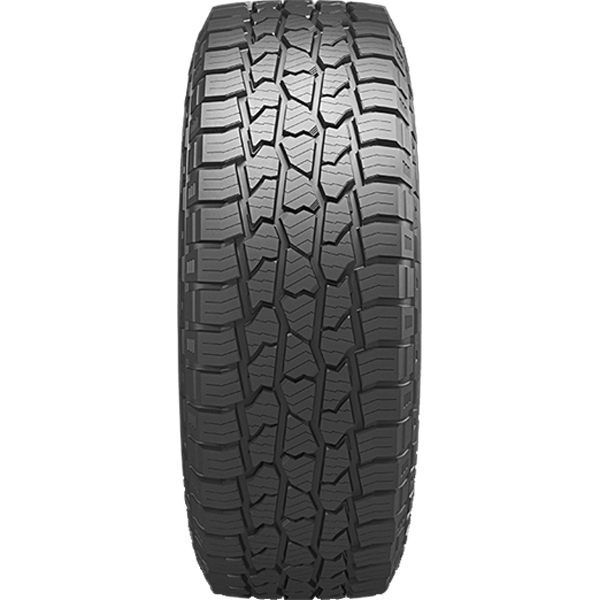

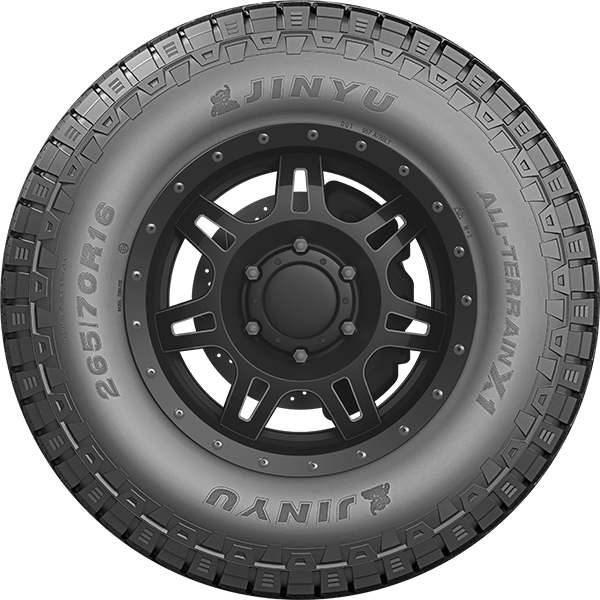

The X1 AT are designed for the highway, local commutes, gravel roads, some off-roading, and most weather conditions including light snow.

Deliver gripping off-road traction with responsive and predictable on-road handling and provide a quiet ride with exceptional stability, instilling driving confidence no matter the terrain.

Technical profile

Speed symbol: Q-V

Tread width: 225 -315

Series: 50-85

Inch: 15-20

UTQG: 640 AB

Mileage: PC---60K,LT---50K

Commit ourselves to providing customers the best value and experience.

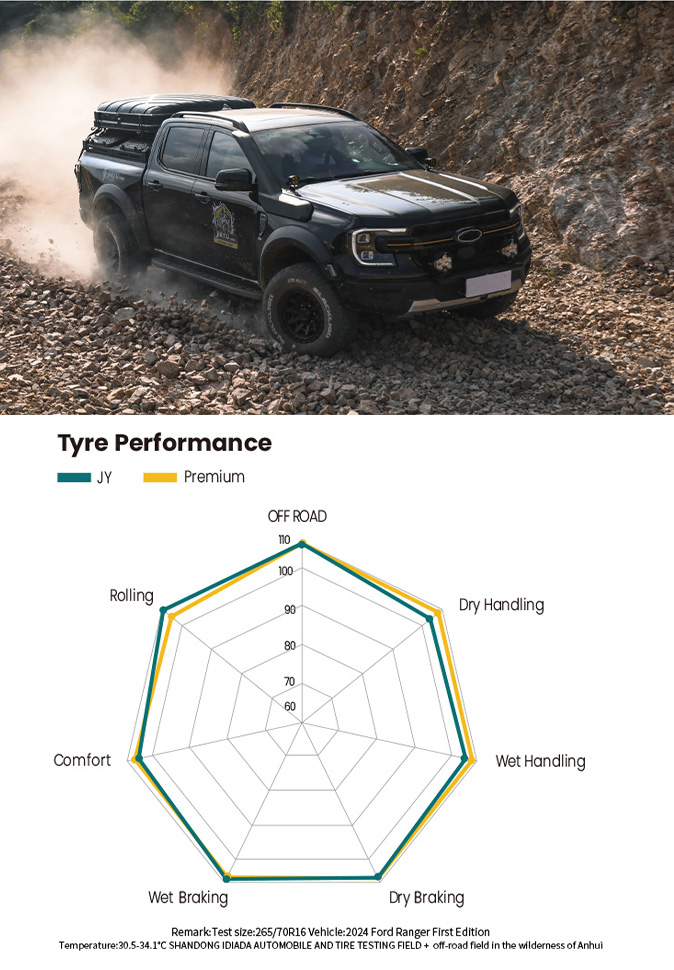

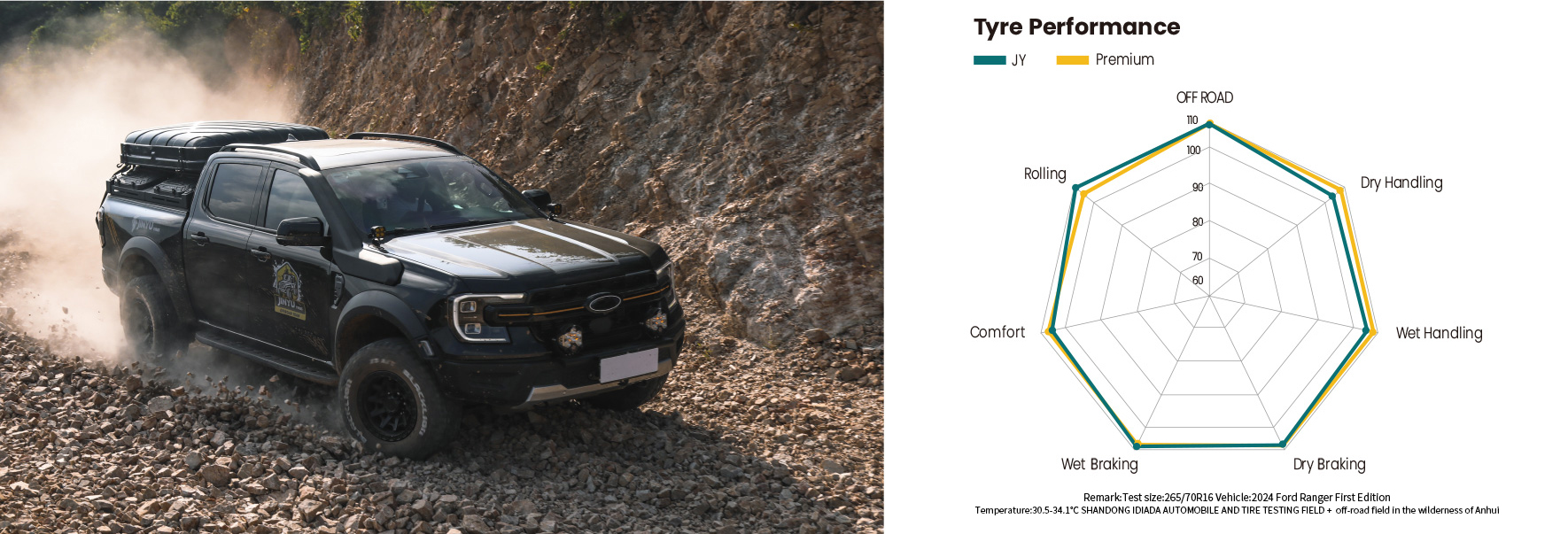

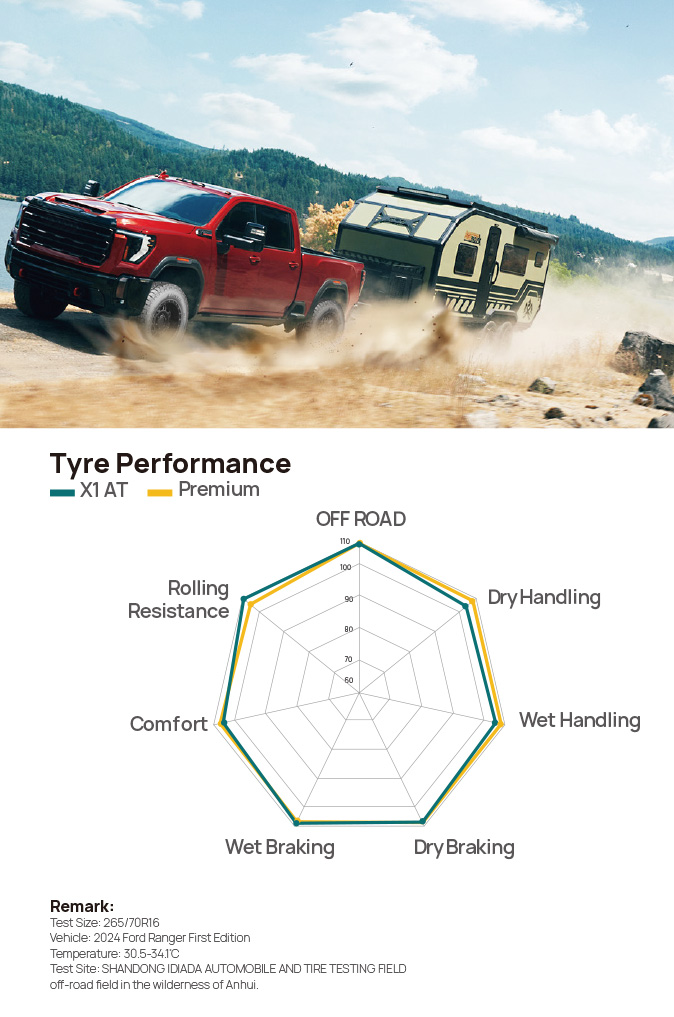

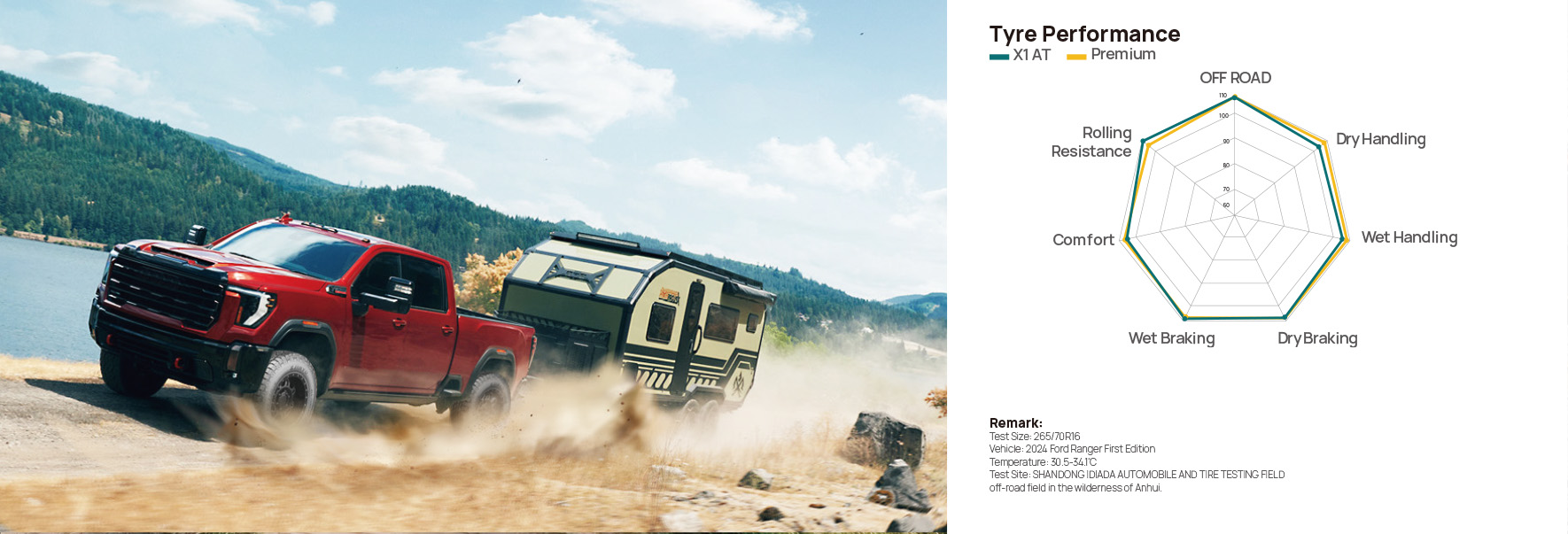

Features

scale of 1 to 10(best)

Wear

8
Breaking

9
Handling

8
Ride Comfort

8
Quiet Ride

7
Fuel Efficiency

7
Off-Road

6
Snow Traction

6

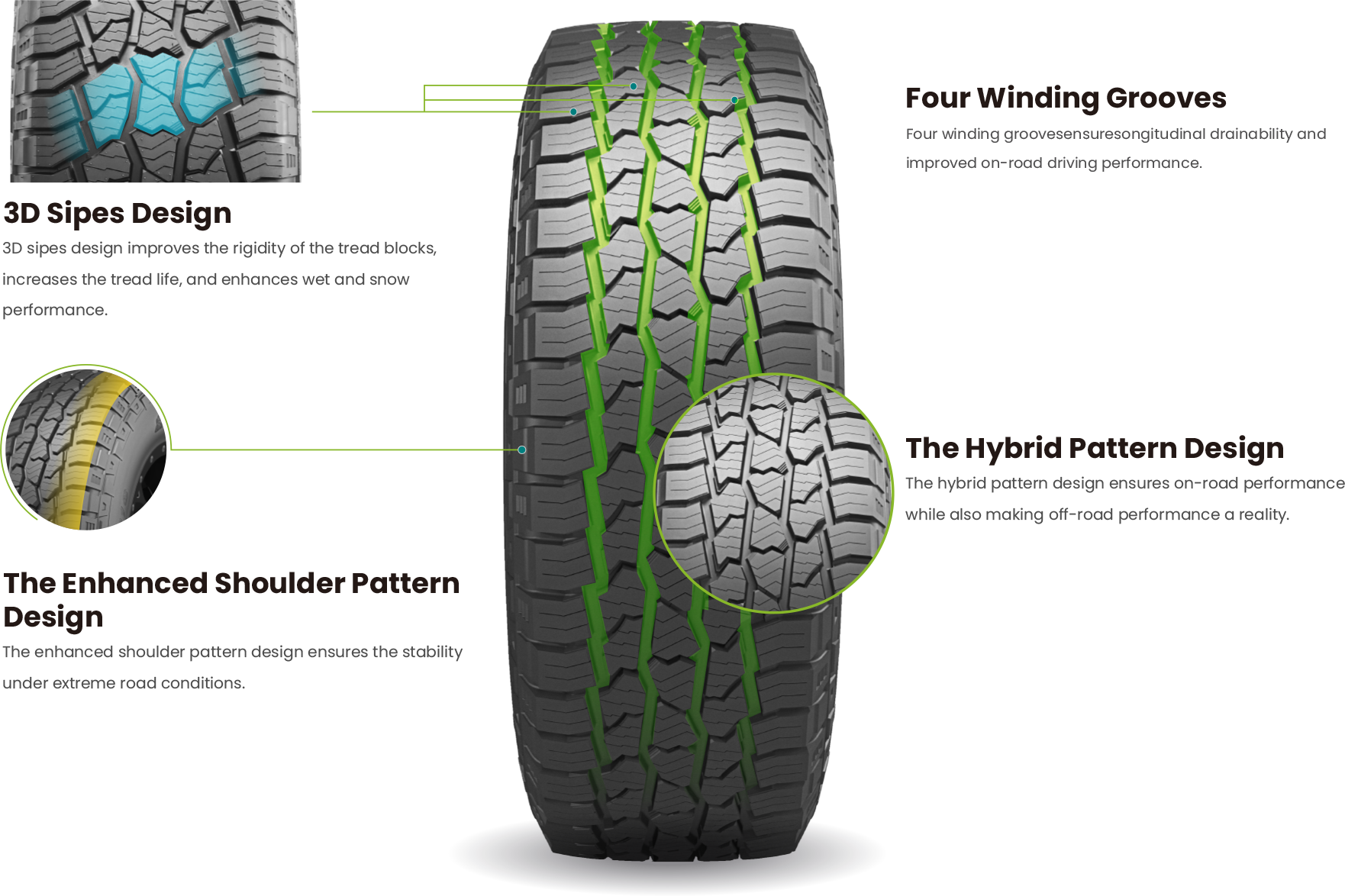

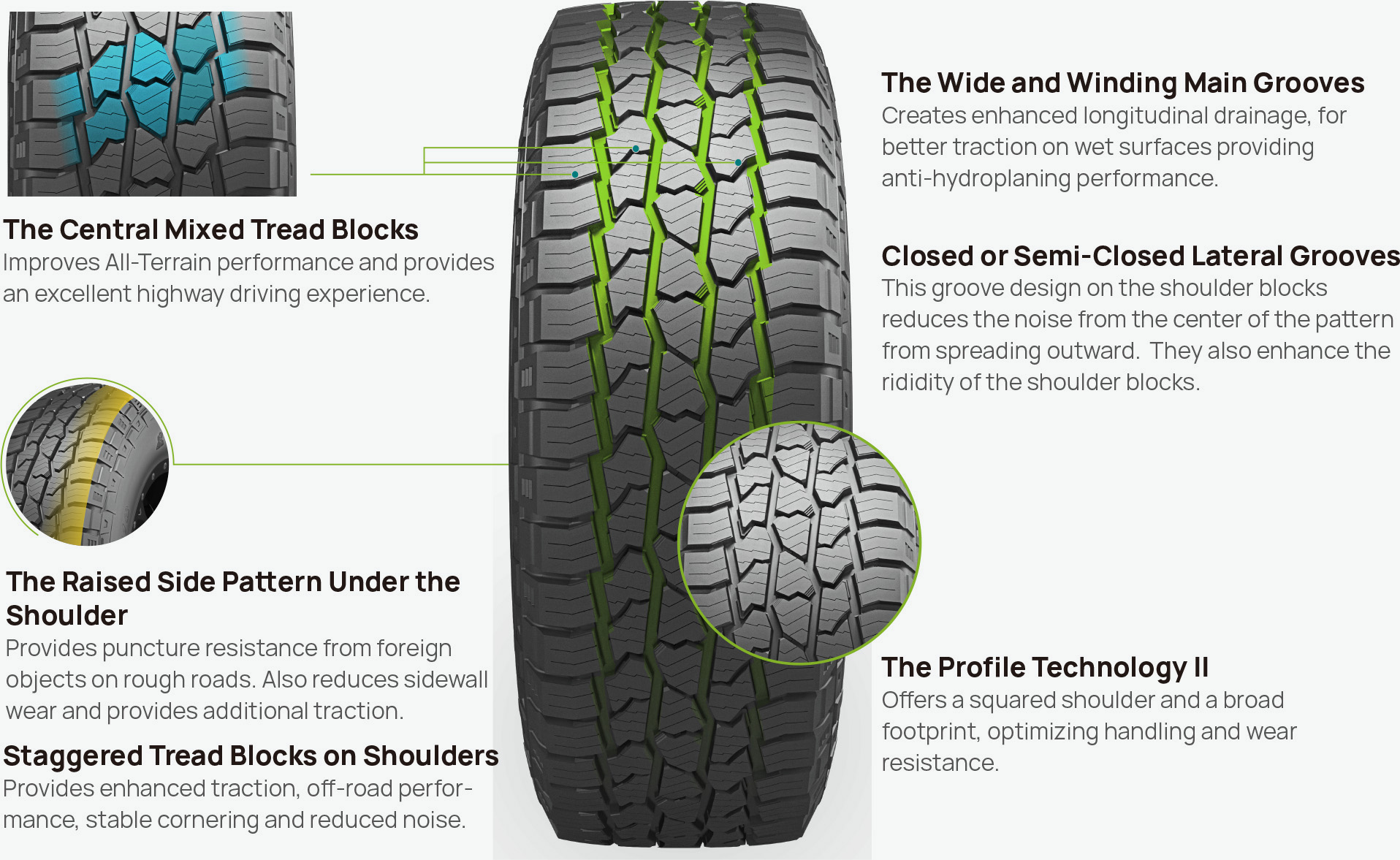

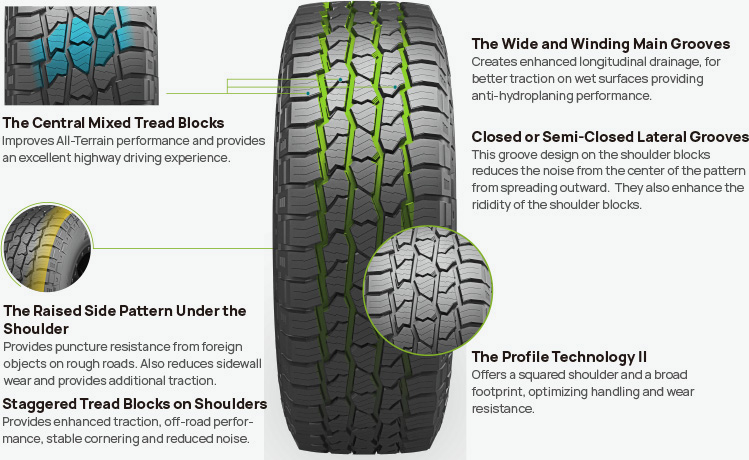

JINYU Profile Technology Ⅱ

JINYU Profile Technology Ⅱ, a profile design technology, and the square shoulder profile design provides a wide ground contact area, optimized distribution of its footprint for improved wear resistance and handling.

Tire Parameters

How to read your Tire

All

20'

18'

17'

16'

15'

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	50	265/50R20	107V		8.5	7.5	9.5	10.6	2149	44	774	640/A/B	60K
20	55	275/55R20	113H		8.5	7.5	9.5	10.6	2535	44	810	640/A/B	60K
20	60	275/60R20	115H		8	7.5	9.5	10.6	2679	44	838	640/A/B	60K
18	60	265/60R18	114H	XL	8	7.5	9.5	10.6	2601	50	775	640/A/B	60K
18	65	265/65R18	114T		8	7.5	9.5	10.6	2601	44	801	640/A/B	60K
18	65	275/65R18	116H		8	7.5	9.5	10.6	2756	44	815	640/A/B	60K
17	65	245/65R17	111T	XL	7	7	8.5	10.6	2403	50	750	640/A/B	60K
17	65	265/65R17	116T	XL	8	7.5	9.5	10.6	2756	50	776	640/A/B	60K
17	70	245/70R17	114T	XL	7	6.5	8	10.6	2601	50	776	640/A/B	60K
17	70	265/70R17	115T		8	7	9	10.6	2679	44	804	640/A/B	60K
16	70	235/70R16	109T	XL	7	6	8	10.6	2271	50	736	640/A/B	60K
16	70	245/70R16	111T	XL	7	6.5	8	10.6	2403	50	750	640/A/B	60K
16	70	255/70R16	115T	XL	7.5	6.5	8.5	10.6	2679	50	764	640/A/B	60K
16	70	265/70R16	112T		8	7	9	10.6	2469	44	778	640/A/B	60K
16	75	245/75R16	111T		7	6.5	8	10.6	2403	44	774	640/A/B	60K
16	75	265/75R16	116T		7.5	7	9	10.6	2756	44	804	640/A/B	60K
15	75	235/75R15	109T	XL	6.5	6	8	10.6	2271	50	733	640/A/B	60K

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	65	LT275/65R20	126/123S	E	8	8	9.5	13.3	3750/3415	80	866	/	50K
18	65	LT275/65R18	123/120S	E	8	8	9.5	13.3	3415/3085	80	801	/	50K
18	70	LT265/70R18	124/121S	E	8	7	9	13.3	3525/3195	80	829	/	50K
18	70	LT275/70R18	125/122S	E	8	7	9	13.3	3640/3305	80	843	/	50K
17	70	LT245/70R17	119/116S	E	7	6.5	8	13.3	3000/2755	80	776	/	50K
17	70	LT265/70R17	121/118S	E	8	7	9	13.3	3195/2910	80	804	/	50K
17	70	LT285/70R17	121/118S	E	8.5	7	9.5	13.3	3195/2910	80	832	/	50K
17	70	LT315/70R17	126/123S	E	9.5	8	10.5	13.3	3750/3415	80	874	/	50K
17	75	LT245/75R17	121/118S	E	7	6.5	8	13.3	3195/2910	80	800	/	50K
17	80	LT235/80R17	120/117R	E	6.5	6	7.5	13.3	3085/2835	80	808	/	50K
16	75	LT225/75R16	115/112S	E	6	6	7.5	13.3	2680/2470	80	744	/	50K
16	75	LT245/75R16	120/116S	E	7	6.5	8	13.3	3042/2778	80	774	/	50K
16	75	LT265/75R16	123/120S	E	7.5	7	9	13.3	3415/3085	80	804	/	50K
16	75	LT285/75R16	126/123R	E	8	7.5	9.5	13.3	3750/3415	80	834	/	50K
16	85	LT235/85R16	120/116S	E	6.5	6	7.5	13.3	3042/2778	80	806	/	50K
15		31×10.50R15LT	109Q	C	8.5	7	9	13.3	2270	50	775	/	50K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
20	50	265/50R20	107V		8.5	7.5	9.5	10.6	2149	44	774	640/A/B	60K
20	55	275/55R20	113H		8.5	7.5	9.5	10.6	2535	44	810	640/A/B	60K
20	60	275/60R20	115H		8	7.5	9.5	10.6	2679	44	838	640/A/B	60K

inch

Series

Size

LI&SS

Load Range/Ply Rating

STD Rim

Rim Width Min

Rim Width Max

Tread Depth（mm）

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

Limit Warranty

LT275/65R20

126/123S

9.5

13.3

3750/3415

866

50K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
18	60	265/60R18	114H	XL	8	7.5	9.5	10.6	2601	50	775	640/A/B	60K
18	65	265/65R18	114T		8	7.5	9.5	10.6	2601	44	801	640/A/B	60K
18	65	275/65R18	116H		8	7.5	9.5	10.6	2756	44	815	640/A/B	60K

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
18	65	LT275/65R18	123/120S	E	8	8	9.5	13.3	3415/3085	80	801	/	50K
18	70	LT265/70R18	124/121S	E	8	7	9	13.3	3525/3195	80	829	/	50K
18	70	LT275/70R18	125/122S	E	8	7	9	13.3	3640/3305	80	843	/	50K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
17	65	245/65R17	111T	XL	7	7	8.5	10.6	2403	50	750	640/A/B	60K
17	65	265/65R17	116T	XL	8	7.5	9.5	10.6	2756	50	776	640/A/B	60K
17	70	245/70R17	114T	XL	7	6.5	8	10.6	2601	50	776	640/A/B	60K
17	70	265/70R17	115T		8	7	9	10.6	2679	44	804	640/A/B	60K

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
17	70	LT245/70R17	119/116S	E	7	6.5	8	13.3	3000/2755	80	776	/	50K
17	70	LT265/70R17	121/118S	E	8	7	9	13.3	3195/2910	80	804	/	50K
17	70	LT285/70R17	121/118S	E	8.5	7	9.5	13.3	3195/2910	80	832	/	50K
17	70	LT315/70R17	126/123S	E	9.5	8	10.5	13.3	3750/3415	80	874	/	50K
17	75	LT245/75R17	121/118S	E	7	6.5	8	13.3	3195/2910	80	800	/	50K
17	80	LT235/80R17	120/117R	E	6.5	6	7.5	13.3	3085/2835	80	808	/	50K

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
16	70	235/70R16	109T	XL	7	6	8	10.6	2271	50	736	640/A/B	60K
16	70	245/70R16	111T	XL	7	6.5	8	10.6	2403	50	750	640/A/B	60K
16	70	255/70R16	115T	XL	7.5	6.5	8.5	10.6	2679	50	764	640/A/B	60K
16	70	265/70R16	112T		8	7	9	10.6	2469	44	778	640/A/B	60K
16	75	245/75R16	111T		7	6.5	8	10.6	2403	44	774	640/A/B	60K
16	75	265/75R16	116T		7.5	7	9	10.6	2756	44	804	640/A/B	60K

inch	Series	Size	LI&SS	Load Range/Ply Rating	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG	Limit Warranty
16	75	LT225/75R16	115/112S	E	6	6	7.5	13.3	2680/2470	80	744	/	50K
16	75	LT245/75R16	120/116S	E	7	6.5	8	13.3	3042/2778	80	774	/	50K
16	75	LT265/75R16	123/120S	E	7.5	7	9	13.3	3415/3085	80	804	/	50K
16	75	LT285/75R16	126/123R	E	8	7.5	9.5	13.3	3750/3415	80	834	/	50K
16	85	LT235/85R16	120/116S	E	6.5	6	7.5	13.3	3042/2778	80	806	/	50K

inch

Series

Size

LI&SS

STD Rim

Rim Width Min

Rim Width Max

Tread Depth（mm）

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

Limit Warranty

235/75R15

109T

6.5

10.6

2271

733

640/A/B

60K

inch

Series

Size

LI&SS

Load Range/Ply Rating

STD Rim

Rim Width Min

Rim Width Max

Tread Depth（mm）

Max Load(IBS)

Max Pressure(psi)

Overall Diameter

UTQG

Limit Warranty

31×10.50R15LT

109Q

8.5

13.3

2270

775

50K
